4-Channel DC Voltage Current Source/Monitor
6540 / 6541

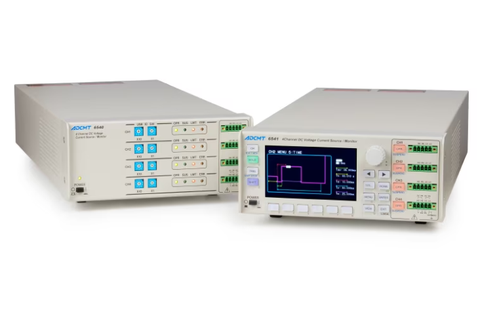

The 6540 and 6541 are 4-channel compact DC Voltage Current Source/Monitors. The 6540 is a model designated for system use without a display, and is optimal for production lines or inspection lines. On the other hand, the 6541, that is a benchtop model equipped with a display and an operation panel, was designed for R&D use with the emphasis on visuality and operability.
The 6540/6541 comes with a USB interface and external control signals for synchronization among units or devices. Optionally, GPIB and LAN interfaces are available on the 6541 only.
|
|
|
6541 |
|
|
Number of digits for generation |
4½ |
||
|
Output method |
Bipolar |
||
|
Maximum output (top) Minimum resolution (bottom) |
Voltage |
±10 V / 500 mA (1 A for 4 channels) |
|
|
100 μV |
|||
|
Current |
±500 mA / 10 V (1 A for 4 channels) |
||
|
100 pA |
|||
|
Number of digits for measurement |
5½ |
||
|
Accuracy (typical range) |
0.02 % |
||
|
Minimum measurement resolution |
Voltage |
10 μV |
|
|
Current |
10 pA |
||
|
Output noise (20 MHz or less) |
4 mVp-p |
||
|
Minimum pulse width |
50 μs |
||
|
Display |
None (LED indicators only) |
4.3 inch color LCD display |
|
|
Interface |
USB port per channel 4 USB ports in total |
Single USB port GPIB port (option) LAN port (option) |
|
