AbrasiMatic 300

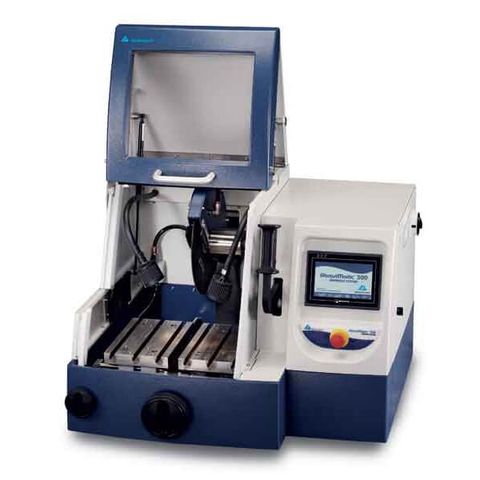

AbrasiMatic 300 Automatic & Manual Abrasive Cutter
The AbrasiMatic 300 is a benchtop dual abrasive cutting machine featuring manual cutting action in 3 directions or automated cutting in 1 direction. This abrasive cutter enables variety in sample preparation to best fit each sample process with both manual and automatic abrasive cutting capabilities. It is engineered with innovative capabilities to be used in both production support and laboratory environments.

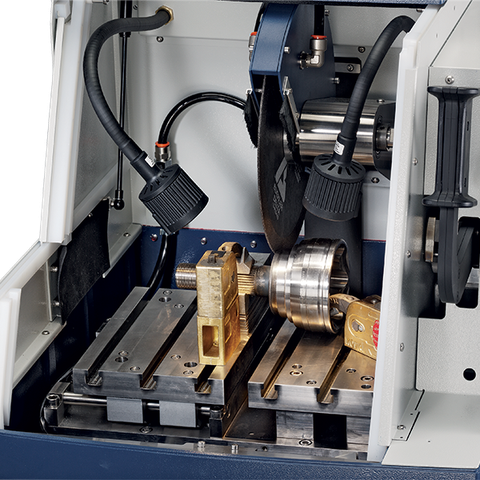

This manual and automatic abrasive cutting machine that can handle the abrasive environment with a stainless steel T-Slot bed.
The AbrasiMatic 300 now includes an accompanying digital display to track X-axis travel improving precision, consistency and repeatability in serial sectioning applications.
Flexibility for changing lab needs
Highly reproducible results
Simple setup for efficient cuts
Durable machine design
AbrasiMatic 300 Automatic & Manual Abrasive Cutter Specifications | |
---|---|
Voltage/Frequency/Phase | 230VAC, 60Hz; 460VAC, 60Hz; 220VAC, 50Hz; 380VAC, 50Hz / 3 phase |
Power Consumption | 4.0kW |
Maximum Current | 15.7amps @ 220/230VAC; 7.9amps @ 460VAC; 9.1amps @ 380VAC |
Motor Power | 5Hp [3.7kW] |
Lighting | Two LED Goosenecks |
Recirculation Tank Capacity | 22gal [83L] |
Hose Fitting Sizes | Intake: 1in [25mm]; Discharge: 2in [50mm] |
Sound Rating | 78dBA – no load |
Fume Extractor Size | 3in [75mm] cut-out diameter |
Control Panel | 7in [175mm] diagonal; 320×240 pixels; 256 color screen, backlight NEMA4 [IP 65] water resistant |
T-slot table dimensions | 14.375 W x 10in D [365 x 254mm]; 12mm wide t-slots |
Travel movement Z-Axis: | 5.75in [150mm]; Y-Axis: 10.25in [260mm]; X-Axis: 2.75in [70mm] |
Auto Y-Axis Feed Rate | 0.7-5in/min [0.3-2mm/sec] |
Window Size | 14 W x 12in H [355 x 300mm] |
Abrasive Wheel Diameter & Arbor | maximum 12in [305mm] & 1.25in [32mm] |
Wheel Speed | 2600rpm @ 50/60Hz; 8200 surface ft/min [2700 surface m/min] |
Maximum Cut Diameter | 4.375in [110mm] |
Cutting Wheel Torque | 121 in/lb [14Nm] |
Cutting Chamber | 36 W x 22 D x 8in H [914 x 558 x 203mm] |
Compliance | CE |
