Absorption Tester
S500

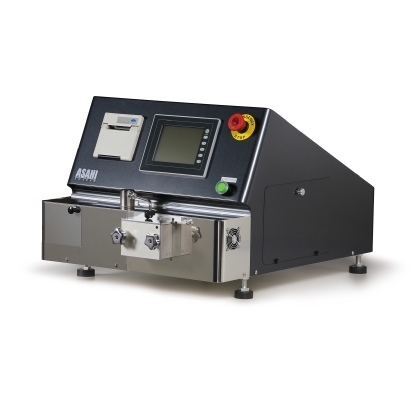

ASAHI ABSORPTION TESTER S-500
Technical details
S-500 is equipment that supplying the liquid while mixing the powder, and measuring the change of the torque at the time.
And it's torque curve varies with the structure of the powder.
Measurement data and torque curve will display and output to the printer and serial port automatically.
Safety mechanism
If not equipped with chamber and lid, mixer will not rotate.
Easy operation
Just push the start switch, this equipment will start the measurement with registered condition.
Convenient tray
Without removing the tray, measuring and cleaning can be done.
You can execute the measurement quickly and cleanly.
Option
By using the buffer tank unit, liquid supply is also possible from the tank located away.
Advantage
S-500 can measure various powders Carbon black and various powder (pigments, battery materials, alumina others) can also be measured.
S-500 can measure powders by various liquids
DBP (for Carbon black). DOP. Linseed oil etc. can also be used.
Function to export data
For ease of data management
1) Built-in printer.
2) Built-in serial port
Visibility and operability
By using the touch panel, got the good viewing and easy operation.
APPLICATIONS FOR THE POWDER MEASUREMENT
Main usage
Carbon Battery, Pigment Alumina
|
Items |
Standard |
Remarks |
|
Mixing speed |
250:125rpm(2:1) |
150:75~250:125rpm |
|
Sample weight |
20.0g |
1.0~200.0g |
|
Supply pump |
Micro |
Precision metering pump |
|
Supply speed |
4.0 pml/min |
1.0~8.0ml/min. |
|
Accuracy of the pump |
Less than ±0.5% |
fs |
|
Print out |
Items |
Explanation |
|
Print out |
Date |
Measurement date |
|
|
Type |
Selected type/ Measurement count |
|
Sample weight |
Sample weight |
(g) |
|
Oil |
Amount of the measured oil |
(ml) |
|
Oil |
Amount of the measured oil |
(ml) |
|
Mode |
Measuring Mode(%,Nm) |
Relative/Absolute |
|
Max torque |
Setting in Absolute Mode |
(Nm) |
|
Temperature |
Temperature of the mixing unit |
(ºC) |
|
Mixing speed |
The low-speed shaft's rotational speed |
(rpm) |
|
Communication function |
RS-232C |
Data transfer to PC |
|
Power supply |
AC100V±5% 6A 50/60Hz |
|
|
Weight |
about 40kg |
|
(Caution) The specifications may be change without notice, for improvement.
Advantage
High precision serve motor
By using a serve motor, improved the accuracy of the mixing speed
More compact design
Measurement unit, a printer, a pump unit, electrical equipments were integrated with one unit
And it became about half the size
Temperature control
Normal temperature control function is equipped standard.
