AC Hipot Tester
AC Hipot Tester
AC Hipot Tester
AC Hipot Tester

AC Hipot Tester

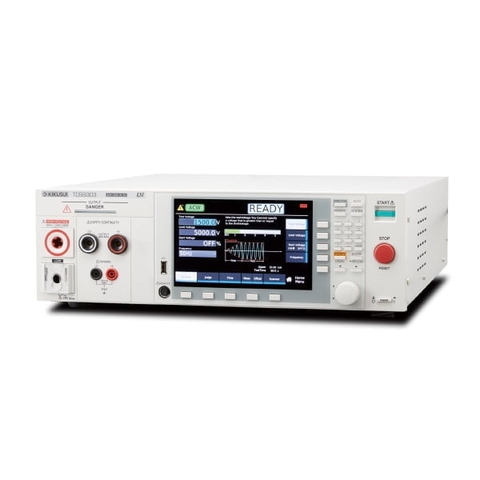

TOS9303

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • Max. output-voltage of AC hipot testing : 5kV/100mA(500VA)
  • Max. output-voltage of DC hipot testing : 5kV/20mA, 7.2kV/13.9mA(100W)
  • Measurement range of insulation resistance testing : 0.001MΩ to 100.0GΩ(DC-25V to -1000V/DC+50V to +7200V)
  • Measurement range of ground bond testing : 0.001Ω to 0.600Ω(3.0A to 42.0A)
  • Electrical breakdown inspection setting available
  • LAN/USB/RS232C standard digital interface
  • Easy to read LCD display for real time monitoring during tests. All measurement values and standard outlines displayed in each test

Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: KIKUSUI
Type: Power Electronics Equipments
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

Electrical safety standard testing for automotive components

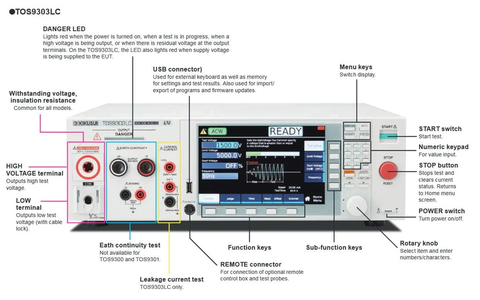

Compatible with both AC and DC, the TOS9303LC complies with a wide varety of safety tests for EV batteries, automotive charging devices and charging connectors. This “all-in-one” safety analyzer can meet the needs of nearly all automotive electrical safety standards.

Electrical safety standard testing for automotive components

| PV (solar battery) module withstanding voltage/insulation resistance testing

Withstanding voltage tests such as IEC61730-2 and JIS C 8992-2 require testing voltage to be drastically increased (4 times the maximum system voltage + 2000V) and maintained for 1 minute.

PV (solar battery) module withstanding voltage/insulation resistance testing

| Multi-channel withstanding voltage/insulation resistance testing

Multiple testing points can be simultaneously tested to cut costs and save time! The TOS9320 high voltage scanner allows for multi channel expansion for the TOS9300 series as well as previous models.

Multi-channel withstanding voltage/insulation resistance testing
