AC Sources

AC6800 series basic AC sources

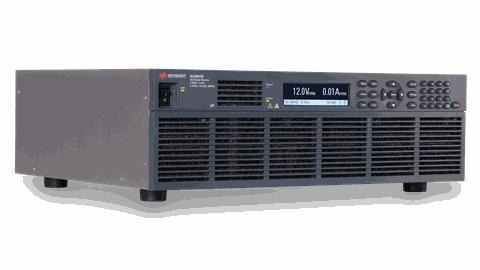

AC6801B

AC6802B

AC6802B

AC6804B

Phases

Single-phase

Maximum output power

500 VA

1000 VA

2000 VA

4000 VA

AC output mode

Voltage ranges (low/high range)

155 Vrms/310 Vrms

Maximum rms current (low/high range)

5 A/2.5 A

10 A/5 A

20 A/10 A

40 A/20 A

Frequency

40 to 500 Hz

DC output mode

Voltage ranges (low/high range)

219 V/438 V

Maximum current (low/high range)

4 A/2 A

8 A/4 A

16 A/8 A

32 A/16 A

Power capacity

400 W

800 W

1600 W

3200 W

Measurements & I/O

Measurements

Voltage, current, power, AC, DC and AC+DC

Transients

Basic transient capability via optional analog card (Option: AC68BALGU)

I/O

LAN/LXI Core with remote Web interface

USB

GPIB (Option: AC68G)
