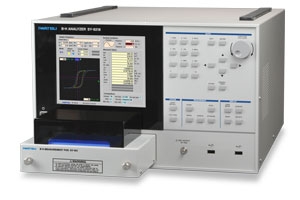

B-H Analyzer
B-H Analyzer
B-H Analyzer
B-H Analyzer

B-H Analyzer

SY-8218

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • 10Hz to 10MHz wideband measurement frequencies(SY-8218)
  • High power amplifier applied to maximum voltage ±140V, maximum current ±5.2A, up to 3MHz(IE-1125B)
  • Automatic measurement of temperature characteristics (-55ºC to ＋180ºC) of up to 4 samples compliant with automotive parts standard AEC-Q200 Grade 0(SY-330)
  • Automatic measurement of temperature characteristics (-30ºC to +150ºC) for up to 41 samples(SY-321A)
  • Achieves the measurement of small piece single board samples with a length of 36mm or more (width of 35mm or less)(SY-956)
  • Measurements with DC bias superimposed up to 30A are possible(SY-960/961/962)
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: IWATSU
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

Accurately measure the AC magnetic properties of soft magnetic materials up to high frequencies
This device measures the AC magnetic properties of soft magnetic materials. It is ideal for new product development and product inspection in R&D departments, quality assurance departments, and manufacturing departments of material, core, parts, and equipment manufacturers. In addition to the BH/Pc measurement function, m/L/Q can be measured.

  • Measurement frequency: 10Hz to 10MHz (SY-8218), 10Hz to 1MHz (SY-8219)
  • Applied waveform: Sine wave, square wave (10Hz - 1MHz)
  • Maximum input current: ±6A
  • Maximum input voltage: ±200V
  • Excitation method: Automatic excitation
    (Maximum magnetic field, maximum magnetic flux density, maximum excitation current, maximum induced voltage specification) De-magnetization by multiplying the damping alternating magnetic field so as not to leave residual magnetization

Item

Specification
Measurementmethod CROSS-POWER method (conformance to IEC62044-3)
MeasurementItem (Symbol) Max. Magnetic fluxdensity(Bm), Residual magneticflux density(Br), Max.Magneticfield strength(Hm), Coersiveforce(Hc), Rectangular ratio(Br/Bm), Relative amplitude permeability(µa), Core loss(Pc,Pcv,Pcm), Primary excitation current(I1m), Secondary induced voltage(V2m), Phase(θ), Total magnetic flux linkage(2φm), Apparent power(VA), Impedance permeability(µ;z), Complex permeability(µ',µ"), Loss coefficient(tanδ), Inductance(L), Resistance(R), Impedance(|Z|), Quality factor(Q), Total harmonic distortion(THD)
Waveformdisplay B-H curve,Excitation current, Induced voltage, Magnetic field, Magnetic flux density
Testfrequency Sinusoidal 10Hz to 10MHz（SY-8218）
10Hz to 1MHz（SY-8219）
Square 10Hz to 1MHz（Duty50）
Magneticfield signal detection Voltage drop at Non-inductive resister, Maximum currentat ±6A
Magnetic fluxdensity signal detection Voltage detection at induced voltage detection coil, Maximum signal detection voltage at ±200V
Digitizer 16bits (8192points / cycle)
Sample connection method 2 or 1 coil (winding) method selectable
Display 8.4" TFT-LCD SVGA 800x600pixels
Power AC100V to AC240V,50/60Hz, Approx. 130VA（MAX.）
Dimensions
Weight		 Approx. 420W x 266H x 480D(mm)
Approx. 12.5kg
Externalmemory USB port for data storage
Accessories Referencesample, POD cover, AC coupler module, Power amplifier cable(BNC-BNC), OSC cable (SMA-BNC), Power cable, Operation manual(CD-ROM), Users guide
