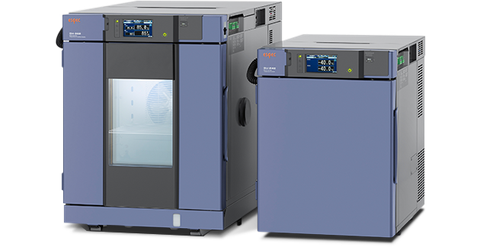

Bench-Top Type Temperature (& Humidity) Chamber

High performance in a compact design
Efficient environment testing achieved by networking

Of a bench-top size that can fit on a personal desk, this small temperature and humidity chamber achieves high performance to fulfill your environmental testing needs.
The lineup including 12 models available in two sizes (22.5L and 64L) with a temperature range of -20, -40, or -60 °C to +150 °C for temperature tests or climate tests allow you to choose the performance best suited for your test applications.
In addition, the model with temperature change rate of 5K/min can meet requirement for fast cycling test from various industries.
Featuring a touch screen color display for easy operation, the controller carries the same function and design of the Platinous J chambers.

Features

High temperature range up to +180°C

Optimization of the chamber top space

Space has been freed on the top of the chamber for storing cables, manuals and notes, or to keep an instrument device closely connected. Viewing window can be equipped on the top.

Variation of accessories to optimize the installation

Wide variety of optional, caster-equipped to choose from. Dolly-type, high or low that can be combined or stacked to fit your chambers in narrow spaces.
19-inch rack and water supply/ drain port can be set to meet specific requirements.

Multilingual controller display

User-friendly color display available in English, Chinese (simplified/ traditional), Korean, and Japanese.

Copy your test programs, exoprt data by USB flash device

Without the need of a PC, copy and transfer your test profiles from one chamber to another. You can also export temperature and humidity data from the chamber for editing on your PC.

Remote monitoring and operation from a browser

Thanks to our web application, remotely access your chamber to monitor and control it, from a PC, a tablet or even a smartphone.
You can edit program patterns, start or stop the chamber, or set an email alert to be sent to a registered PC to notify testing completion.

Stands

Available in 3 different heights, with a total of 11 variations. Mid and high stands come with a shelf, option box or a 19-inch rack. You can also select a mid stand with built-in 18-liter water tank to supply water for extended duration of humidity testing.
