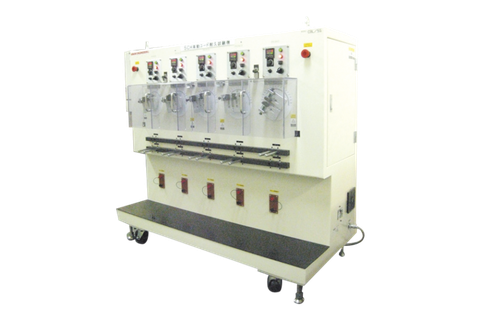

Cable flexing endurance tester

CBL/5S

Contact

Features

A cable flexing endurance tester compliant with the JIS and UL Standards.
Flexing angle changeable between ±40 degrees and ±90 degrees.
Capable of testing various materials such as cables, cords and tubes.
Both of the interlocked type with 5 channels operating simultaneously and the manual type with each channel operating independently are available.
In addition to the 5-channel model, models of a required number of channels are available upon request.
Function to stop the tester automatically when cable breakage is detected.

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: AIKOH

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

CBL/5S
Major application	Endurance test of cords, cables, tubes, etc.
Standard	Compliant with JIS C 8306 and UL 817
Preset count	999999（×10）
Flexing speed	120 times/min. (maximum) (JIS)
Rotating speed	60 turns/min. (maximum)
Test flexing angle	±60 degrees (JIS)
Steady brace location	300mm（JIS）
Steady brace span	40mm（JIS）
Weight location	Not specified (JIS)
Weight	As per request (JIS)
Wire flexing diameter	As per request (JIS)
Dimensions	W1400 x D720 x H1296 mm (5CH type)
Mass	Approx. 370 kg (5CH type)
Power supply	Single phase, 100 VAC
Standard set	Tester, weight with hook (100 g) x 5 pieces
Options	Weight, safety cover, jig/fixture
