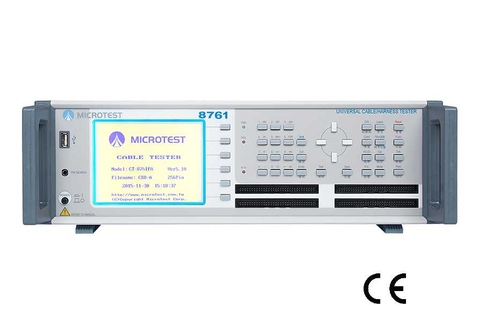

8761FA/8761NA /8761N

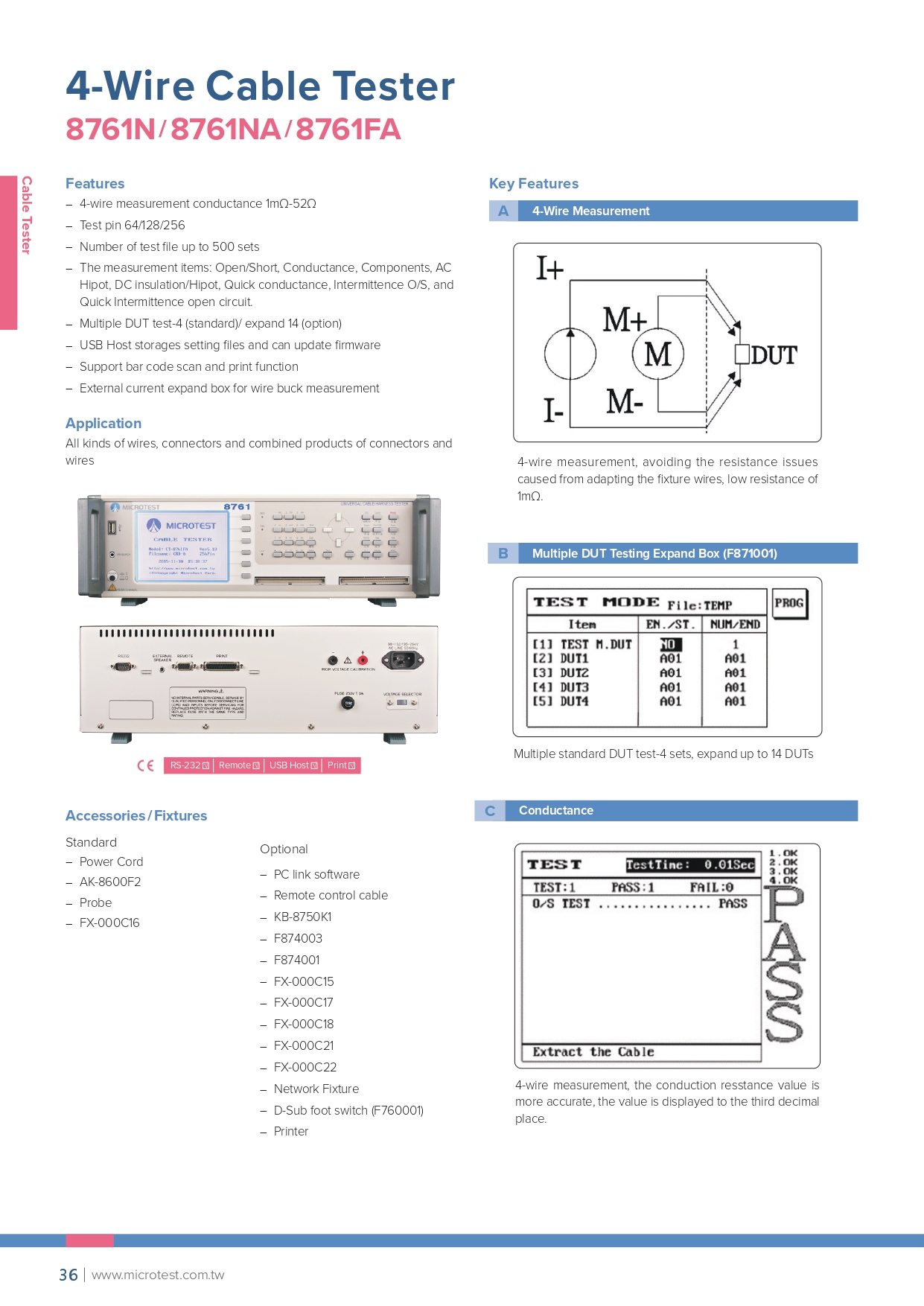

MICROTEST 8761 series Cable Harness Tester employs precise four-wire measurement technology to perform comprehensive electrical characteristic tests on wire harness products, meeting the low resistance level of 1mΩ. The testing capabilities include continuity impedance, open/short circuit, AC/DC safety withstand voltage, IR insulation, and component testing (resistor/capacitor/diode). The testing points can be selected from 64/128/256 options, with a maximum AC withstand voltage output of 1000V and a maximum DC withstand voltage output of 1500V. It supports PC connectivity software and BAR Code scanning, meeting the requirements for automated line testing in wire and connector production.
Model |
8761FA |
8761NA |
8761N |
AC Hi pot Test |
100V-1000V |
100V-700V |
- |
DC Hi pot Test |
50V-1500V |
50V-1000V |
50V-1000V |
Test Pin |
64/128/256 |
