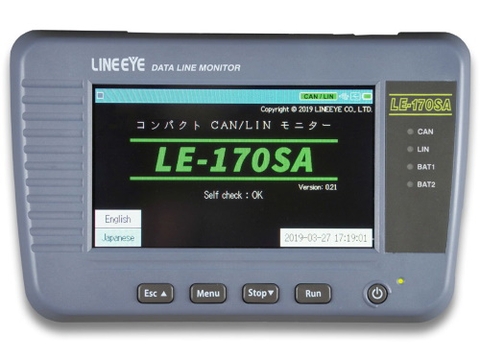

CAN/LIN Line monitor

Interface

CAN (ISO11898) / LIN (ISO9141)

Protocol

CAN 2.0LIN (Rev. 1.1, 1.2, 1.3, 2.0, 2.1)

Capture Memory

16Mbyte (acout 4000Kdata), 2 part division is available

Speed (bps)

CAN: 20kbps to 1Mbps
LIN: 400bps to 26kbps

Capture memory

16Mbyte (about 500K data). Able to divide in two.

Monitor function

CAN: Standard/extended format are supported, bit receiving timing can be set, filtering is available, arbitrary speed can be set.
LIN: Divides the frame by specified time pass or ID setting, filtering is available, arbitrary speed can be set.

Auto run/stop function

It can automatically start and finish measurement at the specified time at the selected repeating cycle (monthly, daily, hourly).

Power ON auto run function

It can automatically start measurement when power is turned ON.

Auto save function

Automatically saves the monitored data in the capture memory and saves as communications log file in a SD card or USB flash memory.
Restart mode and Append mode (which are ring save operation) and Max mode (in which the measurement stops at the specified capacity.) can be selected.

File size

BUF (capture memory size) , 1MB , 2MB , 4MB , 8MB

MAX. files

256

Simulation function

Test data transmission (data sweep is available.)

External Trigger

Input 1, Output 1

External input

44 Measurement of 4 signals.
Range: 0 to 52V. Resolution: 12bit.
Digital threshold: VIH 2.3Vmin. VIL 0.8Vmax.

Display

4.3 inch TFT color display (480x272dot)
28 characters x 6-stage display

Touch panel

Capacitive touch screen

USB2.0 device port

Micro B connector

USB2.0 host port

Standard A connector for USB flash connection

Power

USB bus power 5V/500mA
Two AA Ni-MH batteries or two AA alkaline batteries (LR6)

Drive time

AA Ni-MH batteries: about 5 hours
AA alkaline batteries: about 2 hours

Temperature & humid

0 to 40 degrees celcius (-10 to 50 degrees celcius for storage), under 85%RH

Standard

158mm x 100mm x 31mm, 300g(including batteries)

Size & weight

CE (class A), EMC (EN61326-1:2013)

Accesories

DSUB9 pin branch cabale (LE-009M2), 10 pin external In/Out cable (LE-10ES1), micro USB cable, 2 AA Ni-MH batteries, utility CD, carrying bag (LEB-02), quick start guide, warranty card
