EMIA-Pro
Proven NDIR Gas Detection Technology

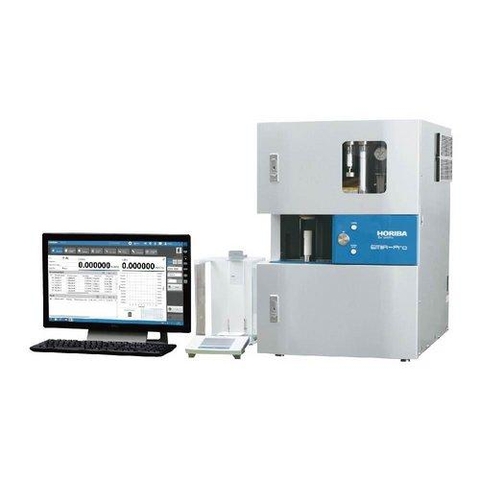

The EMIA-Pro Carbon/Sulfur Analyzer utilizes the infrared method to measure the carbon and sulfur content of a sample after combustion in an induction furnace. It leverages HORIBA's reliable Non-Dispersive Infrared (NDIR) measurement technology, providing a measurement range optimized for carbon from 1.6 ppm to 6.0% and for sulfur from 2 ppm to 1.0%. The analyzer features a unique CO detector and can be utilized for a wide range of inorganic materials, including steel, cokes, catalysts, non-ferrous alloys like aluminum, and lithium-ion battery materials.
Flexible Upgrade after Installation
Customer has the option to expand the functionality of the EMIA-Pro system at any time, even after installation, depending on their specific needs:
Contents |
EMIA-Pro |
|
Required sample amount |
1g ± 0.1g |
|
Typical Meas. time |
70 seconds/cycle |
|
Carbon |
Meas. Range (m/m) |
1.6 ppm - 6.0% |
Blank accuracy |
σn-1 ≦ 0.8 ppm |
|
Sulfur |
Meas. Range (m/m) |
2.0 ppm - 1.0% |
Blank accuracy |
σn-1 ≦ 1.0 ppm |
|
Sample meas. Accuracy |
Carbon |
σn-1 ≦ 2.0 ppm |
Sulfur |
σn-1 ≦ 2.0 ppm |
|
Utility |
Carrier gas |
Oxygen |
Operation gas |
Nitrogen |
|
Power |
200/220/240V, 50/60Hz, 5kVA |
|
Dimensions |
Main unit* |
500(W) x 725(D) x 710(H) mm |
Mass |
Main unit |
approximately 134 kg |
Data processing and operation |
USB data communication with PC Windows 8.1 |
|
Model name |
EMIA-20P: Carbon/Sulfur |
Crucible Pre-heating Unit
The crucible pre-heating unit; FK-100 with automatic transportation function to heat a ceramic cruible at 1100 degree in 10min. before analysis.
Autosampler
Automation crucible loading and disposing unit. Up to 20 pcs of crucible are available to be set. Click here for more information of automation options.
Consumables
Ceramic crucible
Low carbon blank and high dimension tolerance for high precision analysis.
Accelerators
High-purity materials which support stable analysis: Tungsten(W), Tin(Sn), Copper(Cu), Iron(Fe)
