Crimping Machine

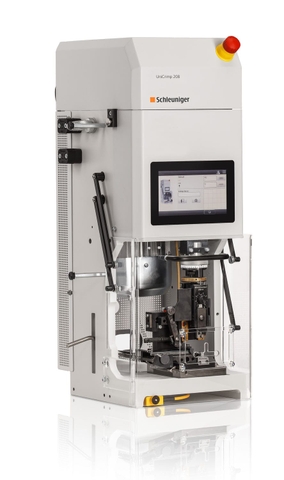

UniCrimp 208
The UniCrimp 208 combines the quality features of the proven Schleuniger crimp presses with a modern and user-friendly design. With a crimp force of 33 kN (3.3 tons), the UniCrimp 208 reliably connects all rear-feed and side-feed banded terminals to a conductor with high quality and speed. The well-arranged 7" touch screen enables easy and direct operation. It can hold all common mechanical or pneumatic universal crimp tools and the corresponding terminal material. The optional, fully integrated ACO 08 crimp force monitoring system offers enhanced quality assurance.
- Easy and intuitive operation via 7" touch screen
- Extremely powerful with a crimp force of 33 kN (3.3 tons)
- Quick-change system for all standard rear-feed and side-feed applicator tools
- Ergonomic design facilitates cable insertion
- Optional crimp force monitoring
Options
- Crimp force monitoring with ACO 08
- Terminal band chopper
- 30 mm (1.18”) stroke instead of 40 mm (1.57”) standard stroke
- Pneumatic valve for control of pneumatic tools
- Terminal oiler
- Paper winder
|
Conductor Cross Section |
0.05 to 10 mm² (30 - 8 A WG) |
|
Raw Material Diameter |
max. 6.3 mm (0.25”) |
|
Crimping Force |
33 kN (3.3 tons) |
|
Noise Level |
<70 dB (A) |
|
Power Supply |
230 V AC, optional 115 V AC, 50/60 Hz |
|
Dimensions (L x W x H) |
320 x 401 x 708 mm (12.6 x 15.8 x 27.8“) |
|
Weight |
85 kg (187 lbs) |
|
CE Conformity |
The UniCrimp 208 fully complies with the CE and EMC machinery directives relating to mechanical and electrical safety and electromagnetic compatibility. |
