Cut & Strip

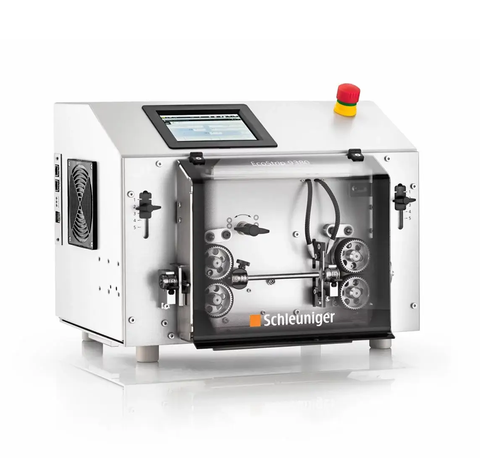

EcoStrip 9380

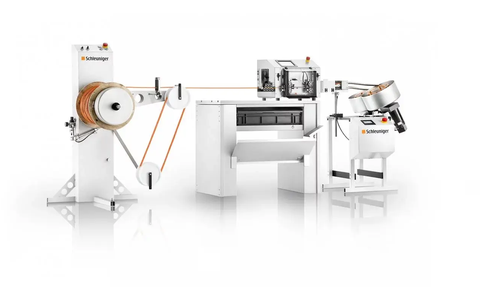

The EcoStrip 9380 is a cost-effective entry-level machine designed for cut & strip applications that require professional quality. It offers a three-in-one feeding unit, allowing for versatile configuration changes by the operator. With improved performance exceeding previous models by about 20%, it can handle two wires simultaneously and is compatible with various accessories to create a fully automatic processing line. The user-friendly 5.7" touchscreen interface and Schleuniger S.ON software ensure ease of operation. It maintains precision with Schleuniger's electronic platform, Bricks, and high-resolution components. Overall, the EcoStrip 9380 combines affordability, versatility, and precision for a wide range of applications.
|
Raw Material Diameter |
0.3 mm – 8.0 mm (0.012 – 0.31”) |
|
Conductor Cross Section |
0.05 mm2 – 8 mm2 (10 mm2 EN60228 class 5&6) | 36 - 8 AWG (depending on cable) |
|
Blade Set |
Up to 1 x 12 mm (1 x 0.47”) wide |
|

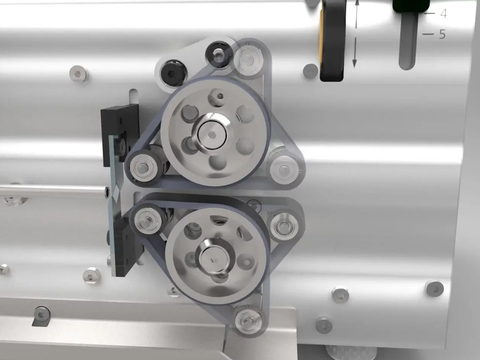

Feeding Unit |
Rollers or belts |
|
Single Conductor |
Yes |
|
Multilayer Single Conductor |
Yes |
|
Workpiece Length |
Maximum 1,000,000 mm (39,370”) |
|
Pull-Off Length |
Left side: 46 mm (1.18”) |
|
Short Mode |
Up to 46 mm (18 mm measured on remaining insulation length) |
|

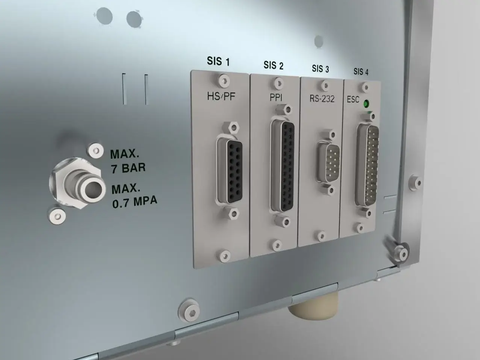

Interfaces |
Standard: Ethernet for PC, USB |
|
Power Supply |
100/240 VAC |
|
Dimensions (L x W x H) |
435 x 397 x 360 mm (17.1 x 15.6 x 14.2”) |
|
Weight |
25 kg (55.1 lbs.) |
