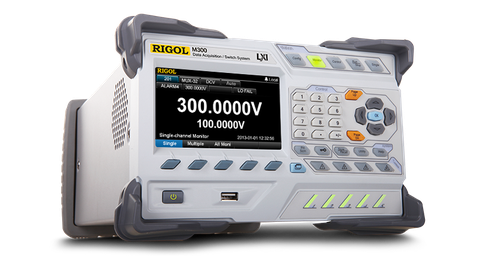

Data Acquisition Switch System
M300

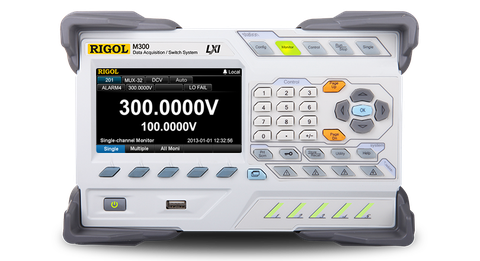

Large Screen Display & Easy to Operate
4.3-inch color LCD screen, simple and convenient function setting, no PC required, the host can independently perform the acquisition function
6.5-bit Reading resolution
The measurement function of the data acquisition system is completed by the 6.5-bit multimeter module, which supports the measurement functions of DCV, DCI, ACV, ACI, 2wr, 4wr, cycle, frequency, temperature (thermocouple, thermistor and RTD) and any sensor

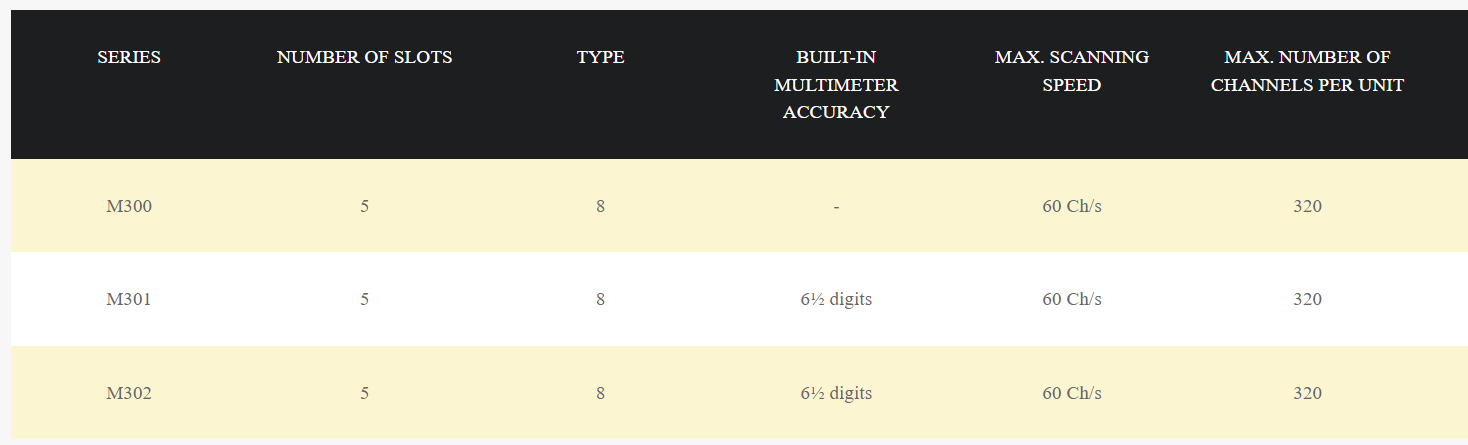

Up to 256 Test Channels

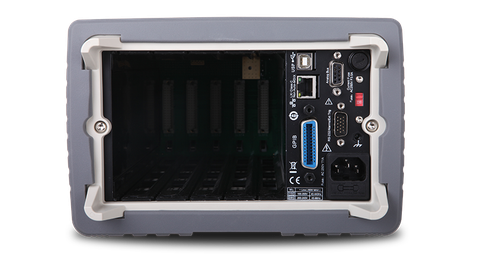

The M300 host has five module slots One slot is generally used for DMM measurement card, and the other four are used for measurement channel According to the selected module, the slot can have up to 64 measurement channels, and each host can have 256 measurement channels.
Optional 8 Module Cards
Support up to 8 kinds of module cards, including various multiplexers, actuators, switch matrix and hybrid test modules
Provide Multiple Communication Interfaces
USB host / device, GPIB, LAN (lxi-c) and RS232 communication interfaces are provided as standard
Supporting Control Analysis Software
Ultraacquire can control up to five hosts to complete the configuration of complex systems Record and draw data after scanning Ethernet or USB PC every time Users can also set limits, alerts, and triggers for advanced system monitoring. The software provides rich data display mode, one click report generation function and data export function.
