GL840

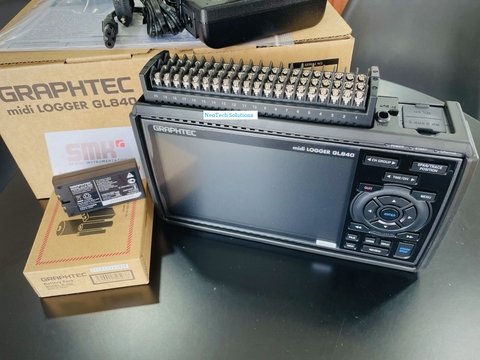

The Graphtec GL840 data logger is a standalone multichannel data logger with isolated universal input. In addition to accommodating numerous measurements, the GL840 includes many communications options and advanced functions making it an incredibly versatile data acquisition instrument for a wide array of applications.
The GL840 has 20 analog input channels, isolated so that wiring errors or overloaded channels do not affect neighboring channels. The system is easily expandable to up to 200 channels by adding the optional B-566 terminal base unit and input terminal units (B-564 or B-565). Input terminal blocks can be connected directly via daisy chain or by using cable. This allows the input terminals to be placed in separate =locations depending upon the requirements of the application.
The GL840 has two SD card slots which support up to 32GB of memory which can hold over a year's worth of data depending upon the sampling rate. A full color, 7-inch TFT display allows user to view data in waveform or digital form while also displaying parameter settings.
The Graphtec GL840 includes a number of communications features which allows integration with other devices and easy file sharing. A wireless LAN module (B-568) can be added to connect the GL840 with Graphtec GL100-WL modules. This expands the measurement variety of the GL840 by utilizing sensors available to the GL100-WL which will relay data directly to the GL840. The GL840 can also be connected to a LAN via a WLAN access point. Measured data can then be monitored via a PC or smart device using the application software. Configuration can also be set via the network.
- Đầu nối: B-564
- Điện áp:
+ Điện áp vào: 20 mV to 100V
+ Điện áp Max. (Input - GND): 60 Vp-p
- Nhiệt độ:
+ R, S, B, K, E, T, J, N, W (WRe5-26)
+ Pt100 (IEC751), JPt100 (JIS), Pt1000 (IEC751)
- Độ chính xác:
+ Điện áp: ± 0.1% of F.S.
+ Nhiệt độ: ± 1.55 ºC
- Số kênh: 20 kênh cách ly (có thể mở rộng tới 200 kênh option)
- Tín hiệu vào ra ngoài (option cable B-513)):
+ Vào: Trigger hoặc mẫu (1 kênh), Logic/Pulse (4 kênh)
+ Ra : Cảnh báo(4 kênh)
- Chu kỳ lấy mẫu: 10 ms đến 1 hour (Đối với điện áp chỉ 10ms đến 50ms) , khoảng thời gian tối thiểu thay đổi theo số lượng kênh được sử dụng.
- Giao tiếp máy tính: Ethernet (10 BASE-T/100 BASE-TX), USB (Hi-speed), WLAN (using B-568 option)
- Bộ nhớ: thẻ nhớ SD card (hỗ trợ SDHC, lên tới 32 GB), hỗ trợ 2 slots, cung cấp kèm theo thẻ nhớ 4GB
- Màn hình: 7-inch TFT color LCD (WVGA: 800 x 480 dots)
- Nguồn: 100 to 240 V AC, 50/60 Hz cung cấp kèm adatpter
- Nguồn: 8.5 to 24 V DC (DC drive cable (option B-514) )
- Pin: (battery pack (option B-517): 7.2V DC, 2900mAh)
- Công suất tiêu thụ: max Max. 38 VA
- Kích thước: 240 x 158 x 52.5
- Trọng lượng: 1010 g
