Data Logger

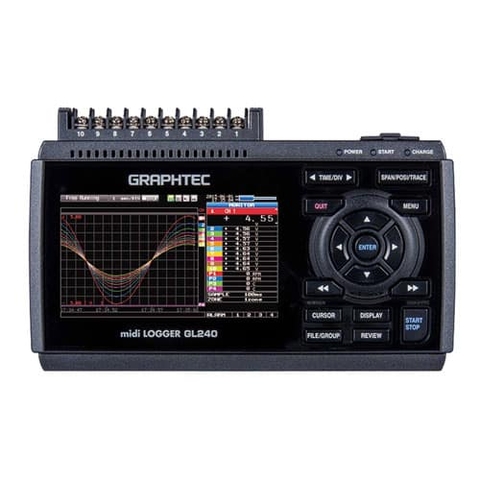

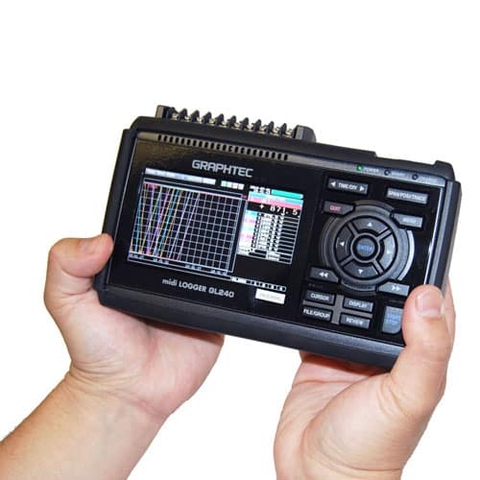

GL240
Wireless measurement using wireless LAN (option)
Wireless LAN option enables the wireless communication with other device.When the GL240 is set as a station, PC and smart devices will be able to access the WLAN unit directly.
Combining GL100-WL and GL240
GL100-WL cab now be connected to the GL240 as a remote sensor using the WLAN feature.GL240 supports 1 unit of the GL100-WL.
All channel isolated/Universal input, Standalone Multi-Channel
Its compact size contains an isolated input system which ensures that signals are not corrupted by inputs to other channels.
Maximum sampling interval of up to 10ms
Provides faster sampling rate 10ms for voltage measurement.
Useful functions
Various functions, such as a bar chart data display, alarm output function, and networking features, are available in the GL240 to assist be conveniently used.
Voltage: 20mV - 100V , 1-5 V/F.S.
Thermocouple: K, J, E, T, R, S, B, N, W (WRe5-26)
Humidity: 0 to 100 % RH - using the humidity sensor (option B-530)
Number of analog input channels: 10 channels
Sampling interval: 10 ms to 1 hour (10ms to 50ms: voltage only), External signal
Time scale of waveform display: 1 sec. to 24 hour /division
Storage: Build-in 4GB Flash Memory, 1 SD card slot (SDHC, upto 32GB)
Display: 4.3 inch color TFT
Operating environment: 0 to 45ºC, 5 to 85%RH (non condensed)
Power source: 100 to 240VAC, 50/60Hz; 8.5 to 40VDC; battery pack 7.2VDC, 2900mAh
Power consumption: Max. 36VA
Dimensions (W x D x H): 188 x 117 x 42mm
Weight: 500g
