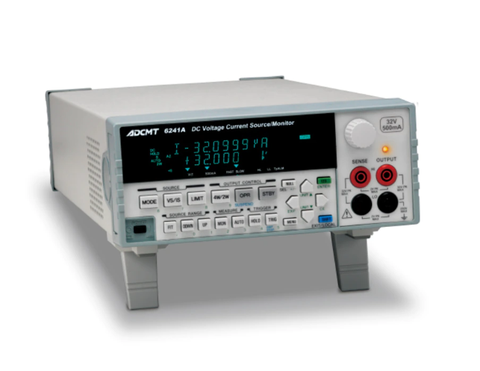

DC Voltage Current Source/Monitor
6241A / 6242
The 6241A/6242 is a DC voltage and current source/ monitor capable of 4½-digit generation and 5½-digit measurement with high accuracy of ±0.02 %.
The instrument has two slope linear sweep, linear sweep, fixed sweep and random sweep functions, and is also capable of pulse measurement with a minimum pulse width of 50 μs and low voltage/current measurement with a resolution of 1μ V/100 pA. Thus, it can be used for a wide range of applications for evaluation in R&D of semiconductors and other electronic components, or for characteristic tests in a production line.
The sink-enabled bipolar output, the individual HI/LO limiter function and the suspend function are effective in evaluation of batteries and power ICs.
|
6241A |
6242 |
||
|
Number of digits for generation |
4½ |
||
|
Output method |
Bipolar |
||
|
Maximum output (top) Minimum resolution (bottom) |
Voltage |
±32 V/0.5 A |
±6 V/5 A |
|
10 μV |
|||
|
Current |
±0.5 A/32 V |
±5 A/ 6V |
|
|
1 nA |
|||
|
Number of digits for measurement |
5½ |
||
|
Accuracy (typical range) |
0.02 % |
||
|
Minimum measurement resolution |
Voltage |
1 μV |
|
|
Current |
100 pA |
||
|
Maximum measurement resistnace |
1.6 GΩ/2 μΩ |
304 MΩ/0.2 μΩ |
|
|
Pulse application / Measurement |
Available |
||
|
Minimum pulse width |
50 μs |
||
|
Interface |
USB, GPIB |
||
