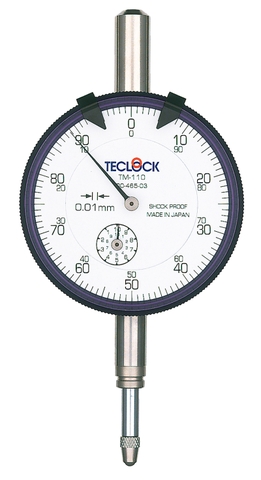

Dial Indicator
TM-Series
A Teclock comparator is a type of device used to attach to the measuring head of a height gauge specialized in measuring straightness, angular deviation of an inner surface, parallelism of grooves, and more. It can also be used with other specialized instruments for applications in industries such as manufacturing, mechanical engineering, construction, and more. Furthermore, the function of a comparator extends to comparing different positions or various reference points with high sensitivity.
A Teclock comparator is a precision measuring tool capable of measuring down to 0.01 or 0.001mm accuracy. Additionally, there are electronic dial indicators from Teclock that offer even greater precision. Teclock is a renowned manufacturer of precision measuring instruments, and their comparator products consistently garner attention from customers. They are trusted by many customers for their excellent quality and competitive pricing.
|
Model |
Graduation （ｍｍ） |
Measuring Range (Free Stroke） （ｍｍ） |
Repeatability （µｍ） |
Indication Erro（r µm） |
Hysteresis （µｍ） |
Standard Contact Point | Measuring Forc(e N) |
Weight （g） |
||||
| Adjacent Error | 1/2 Revolution | 1 Revolution | 2 Revolution | Total Range | ||||||||
| TM-1201 | 0.001 | （1 3） | 0.5 | 2.5 | ±3 | ±4 | ±4 | ±5 | 3 | ZS-017 | 1.5 or less | 170 |
| TM-1201PW | 0.001 | （1 3） | 0.5 | 2.5 | ±3 | ±4 | ±4 | ±5 | 3 | ZS-028 | 1.5 or less | 180 |
| TM-1251 | 0.001 | （1 3） | 0.8 | 2.5 | ±3 | ±4 | ±4 | ±5 | 3 | ZS-017 | 1.5 or less | 170 |
| TM-1202 | 0.001 | （2 2） | 0.5 | 4 | ±5 | ±6 | ±6 | ±7 | 3 | ZS-017 | 1.5 or less | 170 |
| TM-1205 | 0.001 | （5 −） | 1 | 5 | ±6 | ±7 | ±8 | ±10 | 4 | ZS-017 | 1.5 or less | 170 |
