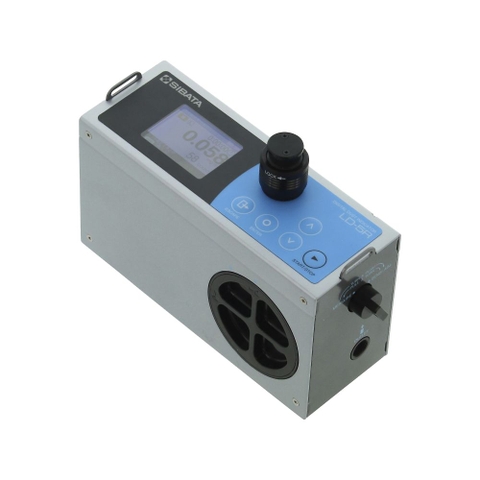

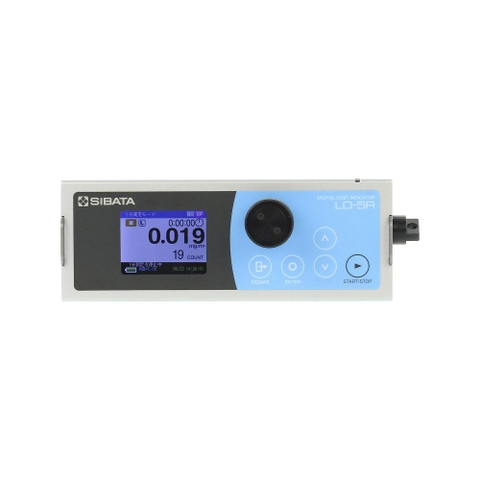

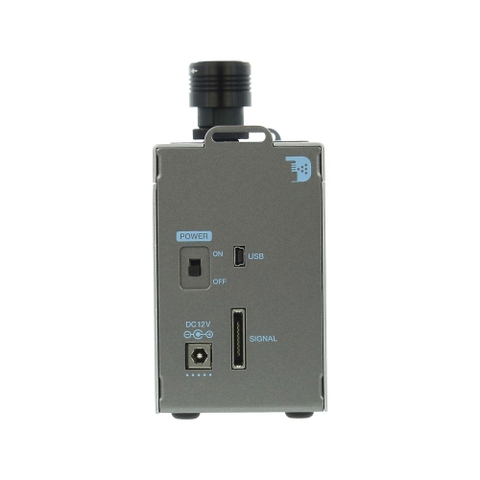

Digital Dust Measuring Apparatus
Digital Dust Measuring Apparatus
Digital Dust Measuring Apparatus
Digital Dust Measuring Apparatus
Digital Dust Measuring Apparatus
Digital Dust Measuring Apparatus

Digital Dust Measuring Apparatus

LD-5R

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • Equipped with a built-in pump with stable suction flow rate.　
  • The instantaneous value（bar graph）and the accumulated count value are both displayed on the screen.　
  • Using the measurement logging function, recorded measurements can be counted and monitored by the included dedicated software, simply by connecting the device to a PC via the included data communication cable.　
  • Fully compliant with Japan Association for Working Environment Measurement calibration standards.
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: ASONE
Type: Measurement instrument
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

Specification

  • Model number: LD-5R
  • Size (mm): 184 x 68 x 109.5
  • Weight (kg): Approximately 1.1 (including cell)
  • Measurement principle: Light scattering type
  • Light source: Laser diode
  • Measurement range: 0.001 - 10.000mg/m3
  • Measurement sensitivity: 1CPM = 0.001mg/m3 (with respect to standard particle)
  • Measurement accuracy: ±10% (with respect to standard particle)
  • Indicator: Color graphic LCD display
  • Display contents: Measured/integration count display: 0 - 99999 counts (count from 00001 continuously for more than 99999), mass density conversion value display: Mg/m3, measurement time, current time, measurement mode, cell remaining amount, K value (0.1 - 9.9), bar chart (instantaneous value display) , trend graph, instantaneous value (CPM), failure alarm
  • Measurement mode: Timer (1 minute, 2 minutes, 10 minutes, 60 minutes, 240 minutes, any, manual, log (logging), span check, BG (background)
  • Output: USB/RS-232c output, no voltage pulse output (open collector, withstand voltage 12Vmax), voltage output (0-1V, 3 ranges selection available, output impedance 100Ω)
  • Power supply: AC adapter (included), AA battery x 6 pieces (included for test)
  • Accessories: Shoulder belt, filter
