Digital Force Gauge
Digital Force Gauge
Digital Force Gauge
Digital Force Gauge
Digital Force Gauge
Digital Force Gauge

Digital Force Gauge

ZTS series

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force.
  • Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen.
  • Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices.
  • Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time graphing also possible.
  • Next Series (Firmware Ver.5 or later) equips extended functions such as firmware updates and various software downloads from IMADA download site.
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: IMADA
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

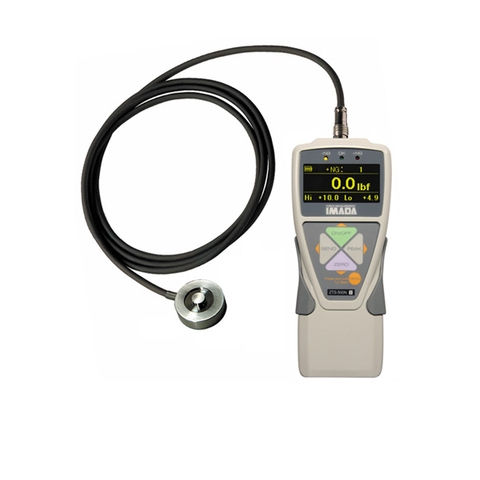

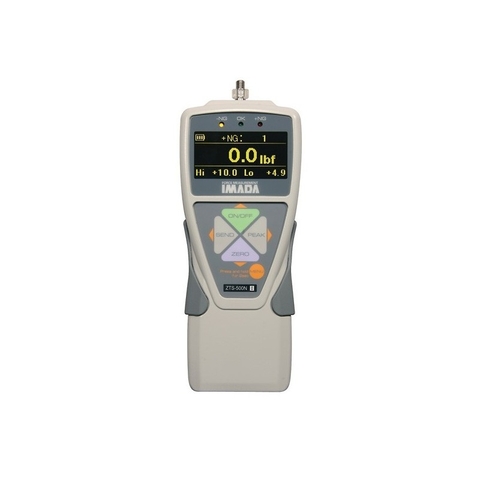

Standard type digital force gauge has capacity of 1000N and is easy-to-operate and functional, with 2000Hz high-speed sampling for accurate peak measurement and smooth curve when graphing data. The included software enables data management via PC, and graphing software for detailed data analysis. Several external output methods are available for connection to various devices. Next Series digital force gauges with firmware Ver.5 or later has improved measurement stability with less noise, and optional functions and software can be downloaded from the dedicated website (IMADA-connected.com). Some functions require connection to separately-sold products.

Model  ZTS
Feature Standard model with high performance and usability
Accuracy +/-0.2%F.S.+/-1digit
Unit of measurement  N, kgf, lbf (*2)
Display 4-digit organic EL
Display update 16 times / sec.
Sampling rate 2000 data / sec at maximum
Battery 8 hours (2 hours charge)
Safe overload rating Approx.200%F.S.
Operating environment Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Function Customized display (header and footer), Peak hold (tension and compression),
Internal 1000 points data memory, Comparator (judgment of OK or NG),
Reversible display, Sign inversion, Zero clear timer,
+NG alarm, Off timer (auto power off), Dumping,Time display, Setting lock
Output USB, RS232C, Mitutoyo digimatic (*3), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning Approx.110%F.S. (Warning message and alarm )
External connecting switch SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight From 2N to 1000N model: Approx.490g
Dimensions Please refer to dimensions.

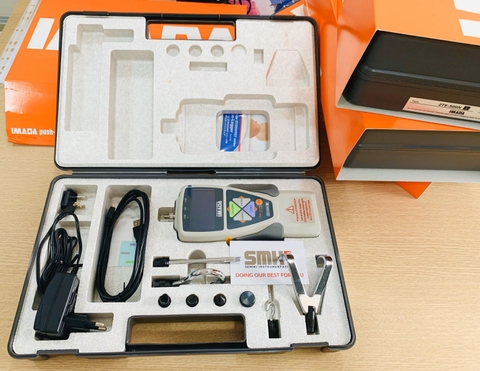

Accessory AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Attachments (The set of attachments varies according to range.), USB cable,Carrying case.
