Digital gauge
SA series
Contact
Call 0972000270 now for the best advice!
Status:
Out of stock
Brand: CITIZEN
Type: precision measuring instrument

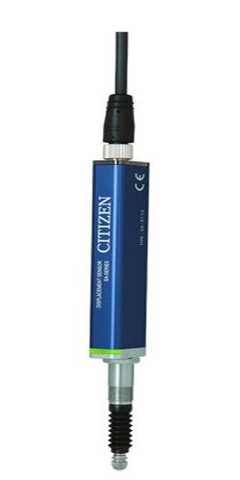

SA-S110/SA-S510
A high-precision contact-type displacement sensor that optically detects the absolute position of the spindle and outputs it at high resolution. This sensor functions as a length measurement system when used with SA Series controllers (sold separately).
Easy error recognition with an LED indicator
Easily detachable, compact connector
An LED indicator has been adopted for the sensor for the first time. Pass/fail judgment result can be recognized at a glance just by looking at the detector.
| Model | SA-S110 SA-S110/03N |
SA-S510 SA-S510/03N |
|
|---|---|---|---|
| Measurement method | Optical absolute linear encoder method | ||
| Measurement range | 10mm | ||
| Resolution | 0.1μm | 0.5μm | |
| Indication accuracy (P-P)*1 | 1.0μm | 2.0μm | |
| Measuring force*2 | 1.65N(SA-S□10) / 0.35N(SA-S□10/03N) | ||
| Protection grade*3 | IP67 | ||
| Weight | Approx. 80 g | ||
| Cable | Purchase separately Option | ||
| Measurement terminal | Ceramic ball Φ3.175 mm | ||
| Rubber bellows *4 | Material NBR | ||
