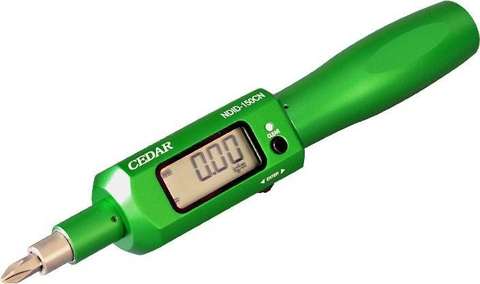

Digital torque driver
NDID-150CN
Idling type Torque Driver which enable to count Qty of Torque and tightened number by tightening with clicking noise.
When the torque is reached certain value, the clutch is automatically disengaged and idling, so there is no worry of over tightening.
|
Model |
NDID-150CN |
|||||||||||||||
|
Range |
0.20 – 15.30 kgf･cm / 0. 18 – 13.28 lbf･in / 0.020 – 1.500 N･m (Selectable) |
|||||||||||||||
|
Accuracy (*) |
+/- ( 1% + 1digit ) ( 0.30 – 15.00 kgf･cm） |
|||||||||||||||
|
Operation Temp |
10 ～ 35℃ (Storage Temp 0 ～ 45℃） |
|||||||||||||||
|
Measurement |
|
|||||||||||||||
|
Memory |
|
|||||||||||||||
|
Battery |
Ni-MH Charge cycles : over 300 times（Time : about 3 hours） |
|||||||||||||||
|
Auto power off |
3 minutes |
(Releasable) |
||||||||||||||
|
Accessories |
AC adaptor Bit #1, 2 Hex wrench USB memory |
|||||||||||||||
