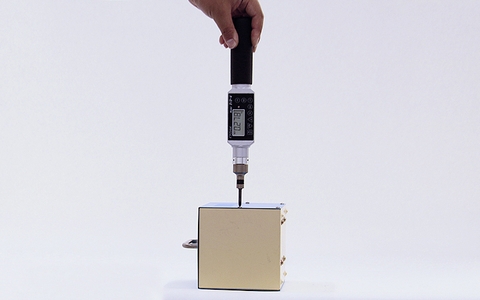

Digital torque driver
DID-4
Lightweight and compact with integrated display !
Cordless type and improves operability. Enable to stably measure for long continuous use.
Screw tightening counter function is also installed as standard.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
|
Measurement |
DID-4 |
|
|
Measuring range |
0.020～4 N･m 0.20～40 kgf・cm 0.20～35 lbf・in |
|
|
Accuracy |
±0.5％ (499 or less digit ± 3digit) |
|
|
Display |
The 4 figures digital display of LCD |
|
|
The measurement |
CW-CCW (right and left) |
|
|
Measurement |
PP |
peak to peak The highest value of load is hold-displayed. |
|
TR |
track A display also changes with load change. |
|
|
PD |
peak-down Load catches and displays the moment included in |
|
|
C |
Real-time Output Load torque value is outputted every about1/ 160 |
|
|
A success or failure |
High and low value are measurement within the limits, and can be set up. |
|
|
The Maximum, minimum, |
The data number, the maximum, the minimum value, and the average value |
|
|
Data memory counts |
800 data |
|
|
Data output |
ASCII format (baud rate 19200) |
|
|
auto clear time |
If the set-up time comes, measurement value will be automatically cleared in |
|
|
Setup of count |
1 to 99 count (count in a clockwise direction) |
|
|
Power supply |
Ni-MH chargeable battery 1.2V×4cells 800mAh |
|
|
Charge time / use time |
Charge about 3 hour /, continuation about 12-hour use |
|
|
Auto-power-off |
After the neglect during 10 minutes |
|
|
Bit / Socket part |
HEX 6.35 |
|
|
Weight |
400g |
|
|
Accessories |
Bit #1+, #2+ |
|
|
Bit holder One way bit holder |
||
|
Exclusive charger |
||
|
Result of calibration document |
||
|
Option |
When outputting data, the cable(USB miniB) is needed. |
|
|
Outside-dimension |
|
|
