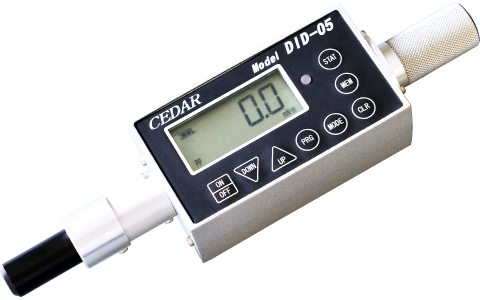

Digital torque driver
DID-05
Lightweight and compact with integrated display !

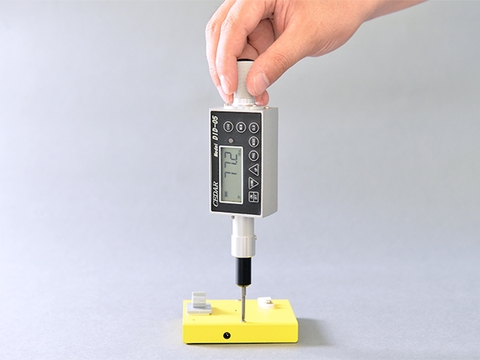

For checking torque of the small screw of M0.8 ~ M2.0. Checking the starting torque of the rotating body such as volume & hinge.
In order to reduce the influence of the pressing force, the weight of the main unit was minimized to about 180.
Screw tightening counter function is also standard installed.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
|
Model Formula |
DID-05 |
|
|
Measuring range |
2.0～500 mN･m 0.020～5 kgf・cm 0.020～4.5 lbf・in |
|
|
Accuracy |
±0.5％ (499 or less digit±3digit) |
|
|
Display |
The 4 figures digital display of LCD |
|
|
The measurement |
CW-CCW (right and left) |
|
|
Measurement |
PP
|
peak to peak The highest value of load is hold-displayed. |
|
TR |
track A display also changes with load change. |
|
|
PD |
peak-down Load catches and displays the moment included in |
|
|
C |
Real-time Output Load torque value is outputted every about1/ 160 |
|
|
A success or failure |
High and low value are measurement within the limits, and can be set up. |
|
|
The Maximum, minimum, |
The data number, the maximum, the minimum value, and the average value |
|
|
Data memory counts |
800 data |
|
|
Data output |
ASCII format (baud rate 19200) |
|
|
auto clear time |
If the set-up time comes, measurement value will be automatically cleared in |
|
|
Setup of count |
1 to 99 count (count in a clockwise direction) |
|
|
Power supply |
Ni-MH chargeable battery |
|
|
Charge time / use time |
Charge about 3 hour /, continuation about 12-hour use |
|
|
Auto-power-off |
After the neglect during 10 minutes |
|
|
Bit / Socket part |
φ 4 |
|
|
Weight |
180ｇ |
|
|
Accessories |
φ 4 Bit + #1（For one-way× 1 For fixation× 1) |
|
|
Exclusive charger |
||
|
Result of calibration document |
||
|
When outputting data, the cable(USB miniB) is needed. |
||
|

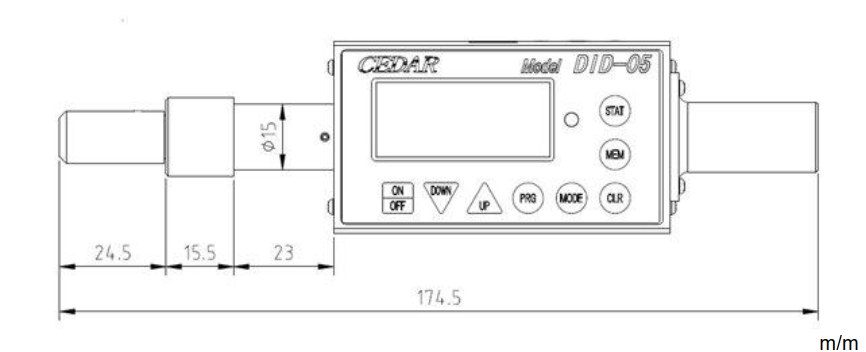

Outside-dimension |
|
|
