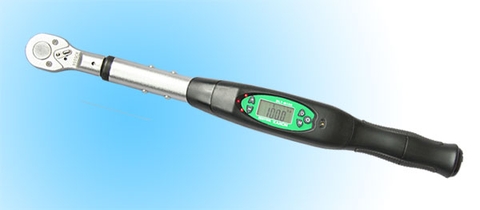

Digital torque wrench
Digital control for ease of use and handling. Precise contol of torque at a low cost.
- Data memory function : Conned the torque wrench after use to your PC, and the measurement data is stored in the PC for editing in the Excel format (Windows Excel only).
- Powered by 2 rechargeable nickel-metal hydride (Ni-MH) batteries, which are recharged via the USB port of the torque wrench while they are in the wrench.
- Auto power-off: Saves power to enable use of the unit for a longer time.
- Calendar function : Date and time of tightening operations are stored in the memory.
- Smart and slim design based on a new concept.
- The head is easily replaceable to suit different purposes of use.
- ±1% + 1 digit guaranteed accuracy (±3% + 1 digit for DLT-N50-UC).
Replaceble heads
| Data memory | 999 data |
|---|---|
| Measurement mode | RUN: Current load value is shown continuously PA: The first peak value is detected and held PC: Peak to peak and auto start |
| Alarm mode | LED and buzzer |
| Measurement | method CW/CCW auto switching |
| Power source | Ni-MH rechargeable batteries, size AA, 1.2V; 2 pieces |
| Use time | Approx. 20 hours fully charged batteries (continuous use) |
| Charge time | Max 5 hours (appopx.) for dischanrge and charge |
| Auto power off | After 60 seconds |
| I/O terminal | USB terminal (for Windows) for data outputting and battery charging |
| Operating temperature range | +5～+35℃ |
