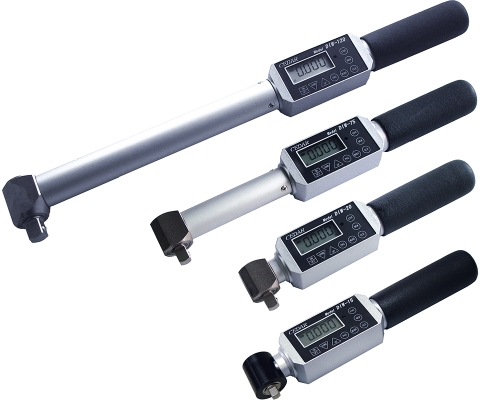

DIW
The wrench head part can rotate about 300 degrees! The eyes and the display board can be always parallel and improves operability.
Lightweight and compact with integrated display !
Cordless type and improves operability. Enable to stably measure for long continuous use.Screw tightening counter function is also installed as standard.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
MODEL |
DIW-15 |
DIW-20 |
DIW-75 |
DIW-120 |
||
Accuracy |
N/m
|
0.20~15 |
0.20~20 |
0.20~75 |
2.0~120 |
|
kgf/cm |
2.0~150 |
2.0~200 |
2.0~750 |
20~1200 |
||
lbf/in |
2.0~130 |
2.0~174 |
2.0~651 |
20~1040 |
||
Accuracy |
Reading ±0.5% |
Reading ±0.5% |
Reading ±0.5% |
|||
Display |
The 4 figures digital display of LCD |
|||||
Measurement direction |
CW-CCW (right and left) |
|||||
PP |
peak to peak The highest value of load is hold-displayed. |
|||||
Measurement |
TR |
track A display also changes with load change. |
||||
PD |
peak-down |
|||||
C |
Real-time Output |
|||||
A success or failure |
High and low value are measurement within the limits, and can be set |
|||||
The Maximum, minimum, |
The data number, the maximum, the minimum value, and the average |
|||||
Data memory counts |
800 data |
|||||
Data output |
ASCII format (baud rate 19200) |
|||||
auto clear time |
If the set-up time comes, measurement value will be automatically |
|||||
Setup of count |
1 to 99 count (count in a clockwise direction) |
|||||
Power supply |
Ni-MH chargeable battery 1.2V×4cells 800mAh |
|||||
Charge time / use time |
Charge 5 hour /, continuation about 12-hour use |
|||||
Auto-power-off |
After the neglect during 10 minutes |
|||||
Bit / Socket part |
□6.35 |
□9.5 |
□12.7 |
|||
Weight (about) |
430g |
470g |
620g |
830g |
||
Accessories |

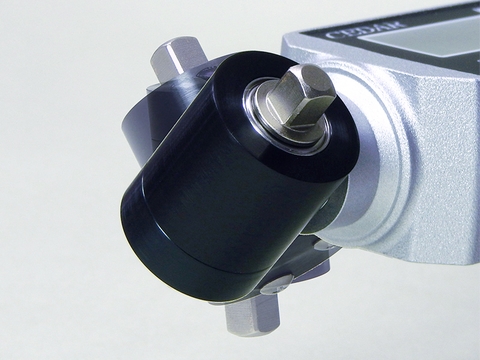

one-way clutch adapter or clutch adapter |
|||||
Exclusive charger |
||||||
Result of calibration document |
||||||
Option |
When outputting data, the USB cable (mini B) is needed. |
