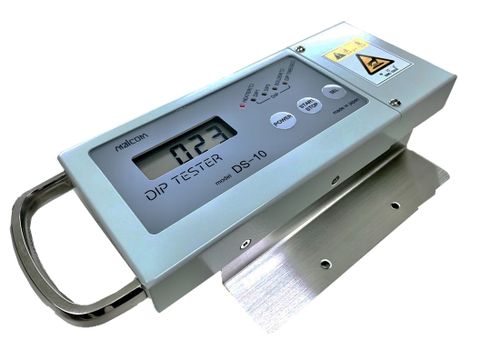

DIP TESTER
DS-10
Data transmission to a PC by USB cable, creating a profile function.
Dedicated software realizes high level of man
Putting it a conveyor to flow through a solder bath to obtain information needed to manage it.
● USB connection to a PC, the dedicated software enables for OK/NG judgment and the management of the test results.
● The created temperature profile makes it possible to monitor the 50ms sampling temperature of the preheat and solder temperature sensors in addition to the conventional management items.
● The heat-resistant cover for high heat load such as Nitrogen oven and etc. is available as an option.
● Equipped with a New Dip Time Sensor, providig a more accurate measurement.
General Specifications
|
Items |
Speifications |
|
Cold contact point compensation |
Compensation with platinum temp. measuring resistor |
|
Heatresistant temp. |
150℃ 5minutes |
|
Display |
LCD |
|
External connection |
USB (mini B connector) |
|
Number of memories |
1 |
|
Sampling time |
50ms(fix) |
|
Outer dimensions・Weight |
214(D)mm x 78(W)mm 43.6(H)mm 820g |
|
Power supply |
AAA batteries x 2pcs. (Ni-MH rechargeable battery is also available.) |
Measurement Data Specifications
|
Items |
Snsor |
Display |
Measurement range |
Accuracy |
OK/NG judgment |
|
Prehdat temp. |
CA thermocouple |
Digital LCD 3-digit |
50～300℃ |
±1℃ |
PC software |
|
Solder temp. |
CA sheath thermocouple |
Digital LCD 3-digit |
0～300℃ |
±1℃ |
PC software |
|
Dip timie (1st・2nd) |
Electrode (4pcs.) |
Digital LCD 3-digit |
0～10sec. |
±0.2sec. |
PC software |
|
Temp. profile |
Preheat・Solder temp. |
PC software |
0～300℃ |
±1℃ |
‐ |
