DOTE4-G (-MD2) Torque Wrench Tester

DOTE4-G (-MD2) Torque Wrench Tester

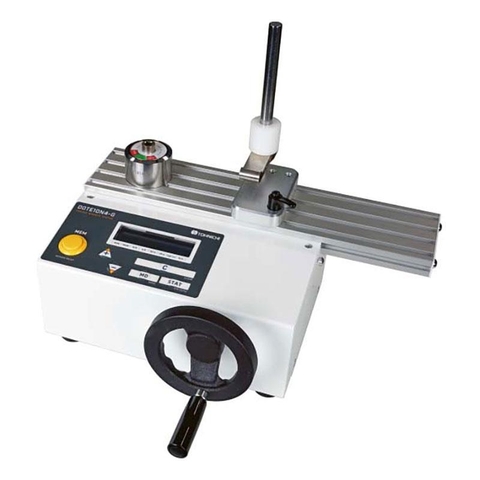

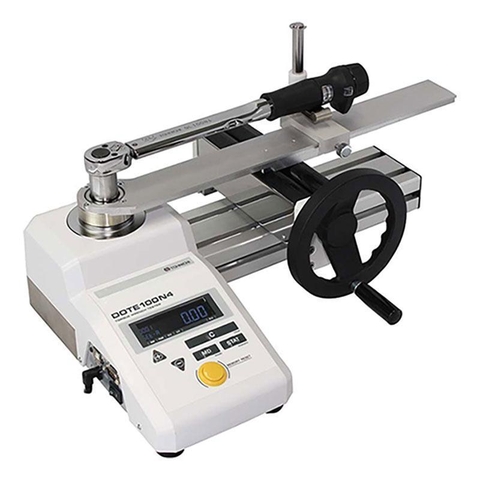

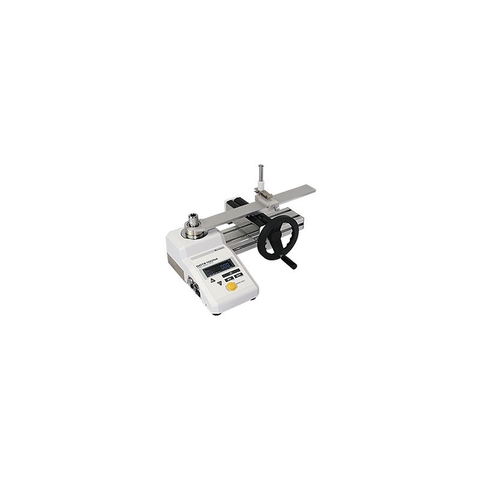

• DOTE4-G Digital torque wrench tester with manual loader. Ideal for torque wrench calibration and adjustment.

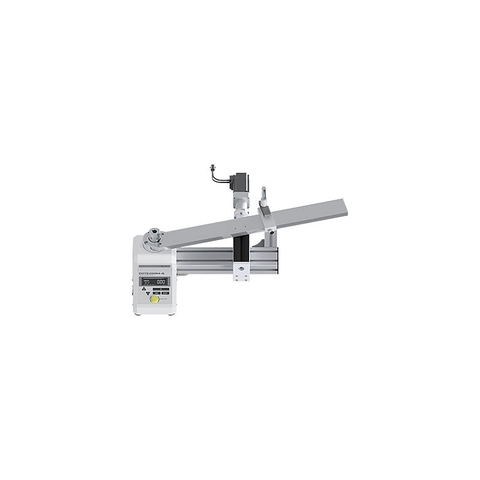

  • Also available with Motor Drive Loader: Model DOTE4-G-MD.
  • Motor Drive Retrofit Kit Available for DOTE4-G to upgrade standard model to motor drive version.
• Pole holder and plate are equipped on all models, which helps keep wrenches in optimal testing position.

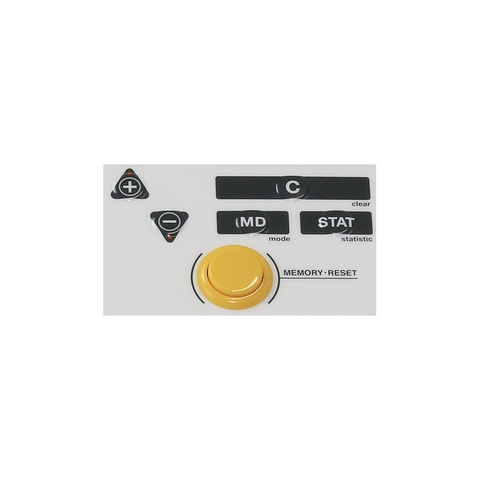

• Auto-zero function.
• Up to 1000 measurement data items can be stored in the memory.
• Peak/Run modes with 10 customizable hi/lo judgment patterns.
• Color Judgment Display makes it easy to confirm readings are within your set parameters.
• Global units of measure selection by keypad: cNm, NM, kgf.cm, kgf.m, lbf.in, lbf.ft.
• Sample quantity, maximum value (Hi), minimum value (Lo) and mean value can be displayed.
• Manual and Auto Reset from 0.1~5.0 seconds.

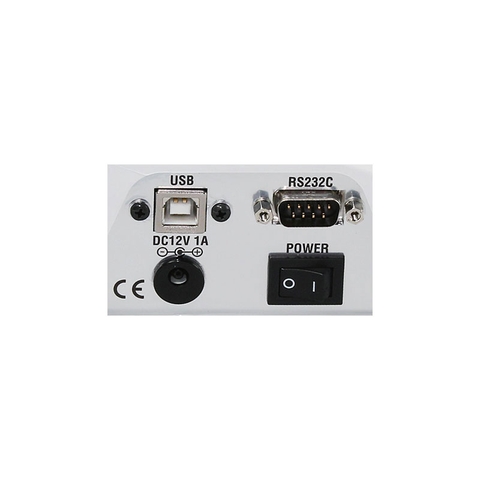

• RS232C output and USB for easy connection to PC or Printer EPP16M3 (cables sold separately).
• Uses AC100 to 240V +/10% 50/60Hz # BA-6, AC Adapter Included.
• Excel Receiver software sends collected data to an Excel®** for data management. (Provided as a free download with purchase of cable) Includes Calibration Certificate: ILAC MRA.
• Calibration Kits (sold separately) to check and adjust the accuracy of the tester on a periodic basis (or send to Tohnichi Service Center).
• CE markings applied for use in the EU.
