Drop Tester
DT-80M
Contact
Call 0972000270 now for the best advice!
Status:
Out of stock
Brand: SHINYEI
Type: Althletic chamber

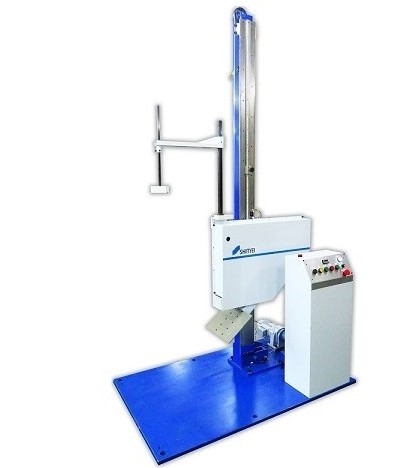

Standard Model of Drop Test for packages
This is a standard drop tester for packages. This system allows for a dramatic improvement in the falling posture of the test sample and a faster testing cycle.
Applications
- Free drop test of packaged freights.
Applied Standard
- ISO 2248
- ASTM D5276
- IEC 60068-2-31
|
Model |
DT-80M |
|
Specimen max weight(kg) |
80 |
|
Specimen max size (mm) |
W900 × D575 × H900 (when flat drop) |
|
Drop height range (mm) |
200 ~ 1800 |
|
Operation with drop test |
Rotational motion |
|
Capacity (kg) |
320 |
|
Size (mm) |
W920 × D1480 × H2583 |
|
Power supply |
AC200V, 3 phasese, 5A |
|
Option |
Support jig for corner and edge drop |
Option for DT-80M
-
Support Jig for corner/edge drop
- Shock acceleration measuring device Shock Manager(Model:SM-500)
