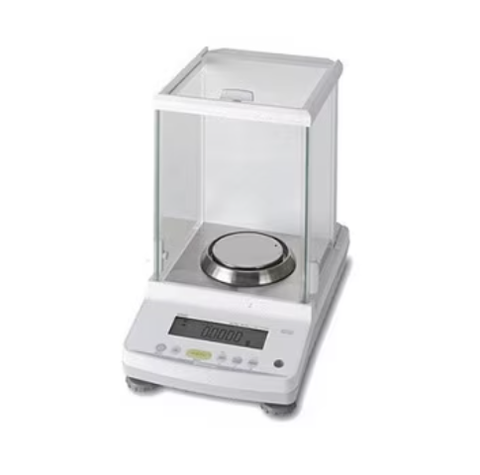

ATX/ATY Series
ATX/ATY Series Features
Internal Calibration (ATX only)
The balance has built-in motor-driven calibration weights.
Sensitivity can be calibrated whenever needed by a single key press.
Easy Setting
Piece Counting
A built-in piece counting function enables balances to be used as parts counters (piece scales).
Checkweighing
This displays pass, high, or low judgments.
Formulation Mode
This is convenient when formulating (preparing) multiple substances.
Percentage Measurement
Measures a percentage value with respect to a preset reference.
ATX84 | ATX124 | ATX224 | ATX324 | ATY64 | ATY124 | ATY224 | ATY324 | |
Capacity | 82g | 120g | 220g | 320g | 62g | 120g | 220g | 320g |
Minimum display | 0,1 mg | |||||||
Repeatability (Standard deviation) | .10,1 mg | |||||||
Linearity | ±0,2 mg | |||||||
Stabilisation Time | Approx. 3.0 seconds | |||||||
Operating Temperature and Humidity Limits | 5-40°C 20-85% | |||||||
Temperature Coefficient for Sensitivity (10-30°C) | ±2ppm/°C | |||||||
Pan Size (mm) approx. | Φ91 | |||||||
Main Body Dimensions (mm) approx. | 213(W) x 356(D) x 338(H) | |||||||
Main Body Weight (kg) approx. | 6.2 | 6.0 | ||||||
Power requirement | 12V, 1A |
