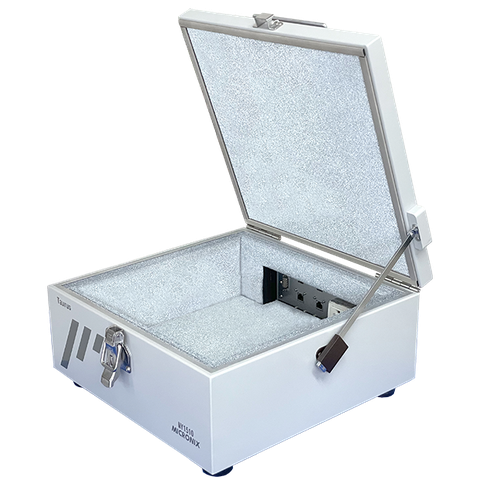

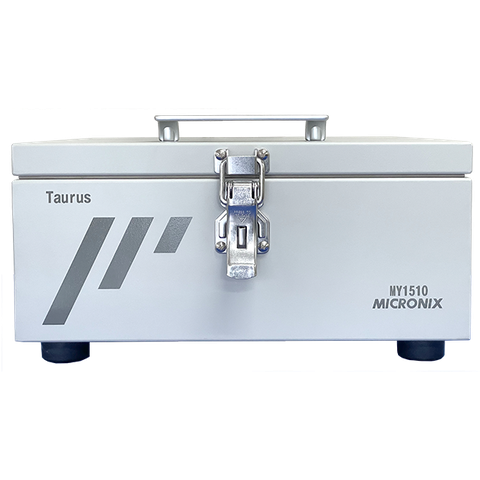

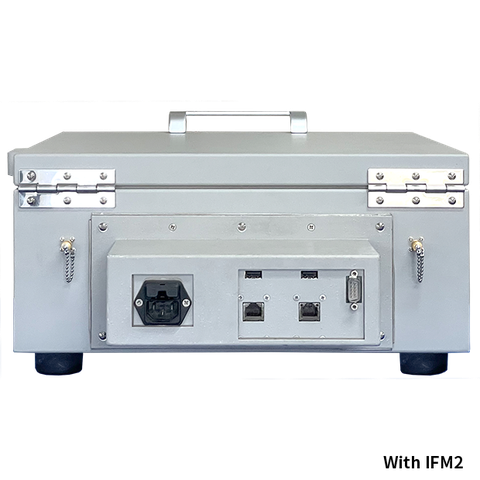

Electromagnetic Anechoic Box /Shield Box

Application

An electromagnetic anechoic chamber or a calibrated standard antenna is usually required to evaluate the antenna gain, but it can be evaluated
simply by using a spectrum analyzer with a tracking generator and an electromagnetic anechoic box.
• Obtain the EUT gain by comparing it with the reference antenna (antenna with a known gain).
• As for the measurement environment, the measurement is performed in the electromagnetic anechoic chamber (anechoic box) as in the case of
radiation pattern measurement.
• Mainly use dipoles and log periodic antennas in the MHz band, and horn antennas in the GHz band.

Specification
