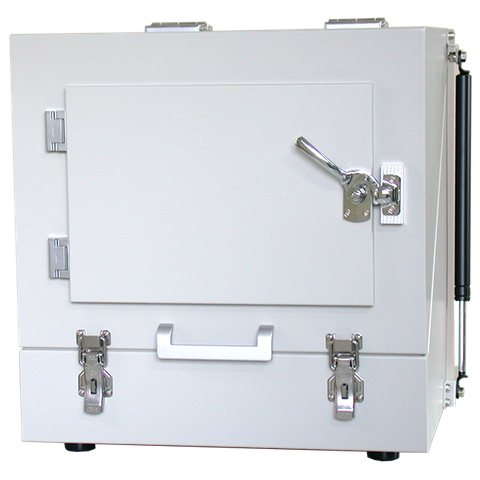

Electromagnetic Anechoic Box /Shield Box

MY1520SW

Contact

Features

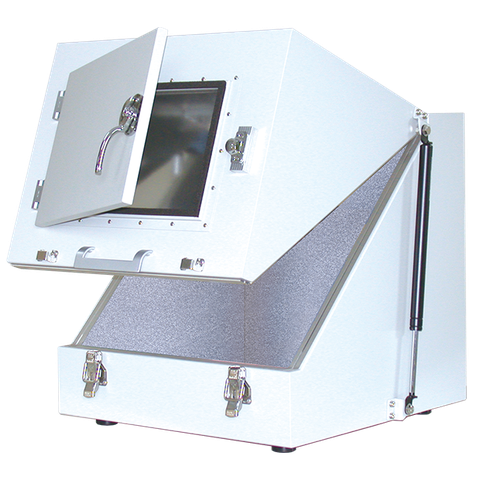

A large shield window is provided as standard equipment. Changes in the state of the EUT can be checked from outside the electromagnetic anechoic box. It can be used in a wide range of test environments, such as checking changes in display content and operation during high-speed data communication.

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: MICRONIX

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

Model	MY1520SW
Outside Dimensions	520(W)×520(H)×520(D)mm
Inside Dimensions	455(W)×455(H)×455(D)mm
Weight	15kg
Shielding Characteristics(typ)	more than 70dB@2 .4GHz
Reflection Loss	more than 20dB（MYA-75:≧2.4GHz）
Shield window	300(W)×200(H)mm
Connectors	2 pcs of SMA（back）
I/F Module installation capacity	2 modules（back）
Option	I/F Module Wooden Table MT104
