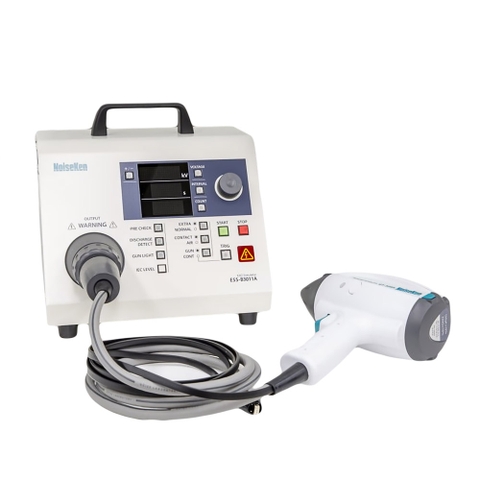

ESS-S3011A & GT-30RA
EMC test equipment to evaluate the resistibility of electronic equipment when energy charged on a human body or object is discharged to the electronic equipment.
This can be available for evaluating malfunctions or functions declines of electronic equipment against the ESD. Programmable simulator to ease some complicated tests. The output voltage is up to 30kV allowing to perform testing compliant to IEC61000-4-2 & ISO 10605 Standards.
Parameter | Specification | |
---|---|---|
Polarity | Positive / Negative | |
Output voltage | 0.20 kV ~ 30.0 kV ± 5% (30.5 kV max) *0.20kV〜1.99kV ±10% 2.00kV〜30.0kV ±5% ~ 10.0 kV : 0.01 kV step ~ 30.0 kV : 0.1 kV step |
|
Repetition cycle |
0.05s ~ 600s ±10% / Manual Set step : 0.01s (0.05 ~ 9.99s), 0.10s (10.0 ~ 600.0s) |
|
Discharge number of times | 1 ~ 60,000 times, Preset 1 time step or continuous preset | |
Discharge mode | Contact discharge / Air discharge | |
Radiation level mode | NORMAL mode / EXTRA mode | |
Trigger mode | Gun trigger / Main trigger / External trigger | |
Operation panel | Color LCD / Push-buttons (Partially lighting) | |
Gun holder | Standard attached (to hold the discharge gun Model GT-30RA) | |
Radiation mode select switch | Extra / Normal switching function built-in | |
Discharge detection | Discharge detection function in air-discharge equipped | |
"IEC STANDARD" test mode | Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps |
|
"MANUAL" test mode | Contact / Air discharge mode, Arbitrary setting 0.2 kV ~ 30.0 kV Sweeping function built-in, Recordable up to 99 units |
|
"SEQUENCE" test mode | Enables to operate units set in MANUAL mode continuously. Max. 22 steps / 1 program and the programs recordable up to 20. |
|
Warning lamp | Lighting at voltage output from the generator. Blinking at electro-static discharging |
|
Charge capacitor / resistor | 150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA) | |
Charge resistor in generator | 10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun)* | |
AUX connector | D-SUB 15 pins female connector (for connecting to patolight, automated ESD eliminator, external interlock input, external trigger input terminal) |
|
Optical communication | Optical connector (serial interface) for connecting to PC connector | |
Power supply / consumption | AC100 V ~ AC240 V 50 Hz / 60 Hz ±10% 75VA | |
Dimensions | Generator : (W)392 mm x (H)312 mm x (D)295.3 mm (gun holder included) Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm |
|
Weight | Generator : approx. 7.5 kg (with Gun Holder) Discharge gun : approx. 800 g (cable and connector excluded) |
