Folding Endurance Tester
No.306/308

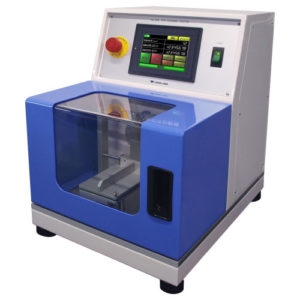

No.306 FPC FLEXING TESTER
- This test is used to evaluate the folding endurance of plastic film and flexible print circuit board.
- The operator is to attach the test specimen to a fixed board and a movable board so that the test specimen is attached at a certain radius. The movable board will bend left and right to flex the test specimen.

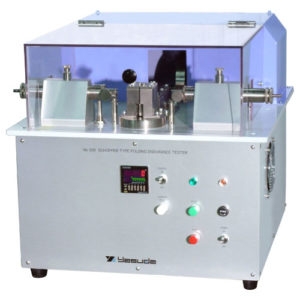

No.308 SCHOPPER TYPE FOLDING ENDURANCE TESTER
- This tester is used to evaluate the folding endurance of paper,paper board,and plastic film according to the Schopper Type testing method.
- By folding the test specimen that is vertically applied tensile force on the long side with the foloding blade, the operator is to calculate the foloding endurance from the number of bends the test specimen required to fracture.
|
Model |
No.306 FPC FLEXING TESTER |
|
Hanging |
1Hanging |
|
Flexing Radius |
Max. 10 mm |
|
Flexing Speed |
Max. 60 cpm |
|
Flexing Length |
Reciprocate 20（± 10） mm、40（± 20） mm、60（± 30） mm |
|
Counter |
6 Digits Preset Counter |
|
Temperature Range |
― |
|
Option |
Conduction Device(for FPC) |
|
Power Source |
AC 100 V、1-Phase、7 A、50/60 Hz |
|
Dimensions/Weight(Approx.) |
W360 × D600 × H550 mm/37 kg |
|
Model |
No.308 FPC FLEXING TESTER |
|
Specimen |
W 15.0±0.1 mm, L100 mm, T0.25 mm or Less |
|
Folding Blade |
T0.5 ± 0.0125 mm、Slit Spacing 0.5 mm |
|
Folding Roller |
φ6 mm、L 18 mm |
|
Test Load |
lnitial 7.6 ± 0.1 N、Max. 9.8 ± 0.2 N |
|
Folding Distance |
20 mm（Front-Back 10 mm） |
|
Folding Speed |
115 ± 10 rpm |
|
Counter |
6 Digitis Preset Counter |
|
Option |
Safety Cover |
|
Power Source |
AC 100 V、1-Phase、10 A、50/60 Hz |
|
Dimensions/Weight(Approx.) |
W450 × D480 × H430 mm/ 60 kg |
