FSA-MSL-50N

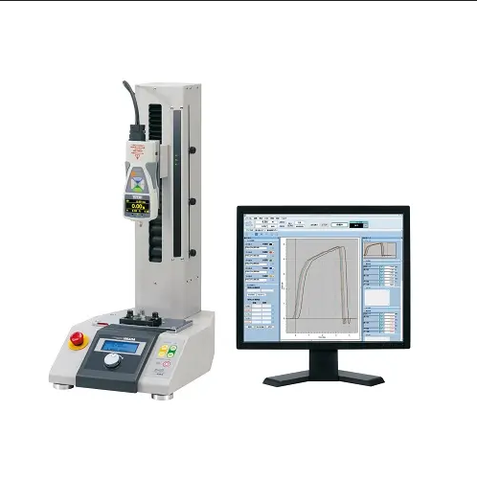

IMADA FSA series is force-displacement measurement unit. This unit allows accurate force-displacement measurement and analysis with force-displacement graphing software. It is ideal for force-displacement measurements such as material characteristic evaluation and tactile testing.
Measurement Unit |
Force |
N, kgf, lbf |
|
Displacement |
mm, inch |
Resolution |
Force |
4 digits (e.g. Resolution of 5N force gauge is 0.001N) |
Displacement |
0.001mm (on software Force Recorder Professional) 0.01mm (on force gauge display) |
|
Accuracy |
Force |
+/- 0.2%F.S. +/-1 digit |
|
Displacement |
+/- 0.1mm +/- 1digit( with no load) |
Sampling cycle |
2000 data/sec |
|
Display update cycle |
16 data/sec |
|
Various function of force gauge |
Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, 1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force, setting lock |
|
Output function |
USB,Serial(RS232C),Analog(Approx. +/- 2V), Comparator, Over load,Sub comparator, USB flash drive |
|
Motorized Stand Function |
Stroke limit, Overload Prevention, Force control Emergency Stop |
|
Motorized Test Stand Power |
AC100V-240V Free input |
|
Operating Environment |
Temperature:0 - 40°C Humidity:20 -80%RH |
|
Accessories |
Instruction Manual, Inspection Certificate, Warranty Certificate, Power cable, Spare hues, USB cable, Driver CD-ROM(including software for data log “Force Logger”), Graphing software “Force Recorder Professional." |
