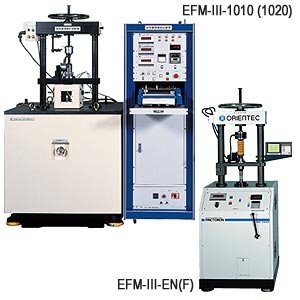

FRICTORON friction and wear tester
FRICTORON friction and wear tester

FRICTORON friction and wear tester

EFM-III Series

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • Conforms with JIS K 7218
  • Applicable to ring, disc and pin test pieces
  • Sliding speed ranging from 0.001 cm/sec to 1000 cm/sec
  • Frictional force measurement ranging from 2 N-cm to 1000 N-cm
  • System can be customized (additional measurement and control items, etc.)
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: AND
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

EFM-III Series applications
  • Evaluation of friction properties relating to materials and products (metal, plastic, ceramics, bearing materials, brake lining materials, clutch disks, self-lubricated materials, lubricant oil, etc.)
  • Measurement of static/kinetic friction
  • Measurement of wear amount
  • Measurement of PV limit value

  • Evaluation of seizure conditions
  • Evaluation of the friction properties according to material combinations
  • Evaluation of the relation between surface treatment and friction properties
  • Evaluation of the relation between environmental conditions and friction properties

Examples of tests in conformity with JIS K 7128

Ring- on-ring Ring-on-disc Three-pin-on-disc



Basic software MSAT-0001
Add-on software for friction and wear tester MSAT-0009
Automatic pressurizing mechanism

Control item

- Maximum number of STEPS: 100
(holding time of each step can be selected from seconds, minutes or hours*)
- Contact load: 5000N at maximum
- Revolution speed: limited value of the tester

Measurement item

Contact load, Contact pressure
Friction force, Friction force amplitude, Friction force, Maximum friction force, Minimum friction force
Elapsed time
Revolution speed
Sample temperature
Ambient temperature
Amount of friction
Sliding distance
Coefficient of friction, Amplitude of friction coefficient, Maximum friction coefficient, Minimum friction coefficient
PV value
Optional equation

 Data unit of measurement

Physical quantity

Unit

Contact pressure

Pa, kPa, MPa, GPa, N/mm2, N/cm2, gf/mm2, gf/cm2, kgf/mm2, kgf/cm2, tf/mm2, tf/cm2, pai, dyn/cm2

PV value

Pa・m/sec, kPa・m/sec, MPa・m/sec, GPa・m/sec, gf/mm2・m/sec, kgf/mm2・m/sec, tf/mm2・m/sec, gf/cm2・m/sec, kgf/cm2・m/sec, tf/cm2・m/sec, psi・in/sec

Time

s, min, h, ms, µs

Coefficient of friction

Dimensionless

Amount of friction

µm, mm, cm, m, in, ft, km

Sectional area

µm2, mm2, cm2, m2, in2, ft2

Revolution speed (angular speed)

rpm, rad/s

Temperature

°C, K, °F

Velocity

mm/min, mm/sec, m/min, m/sec, in/sec

Load

mN, cN, N, gf, kgf, lbf, dyn

Mass

g, kg, lb
