HTGS

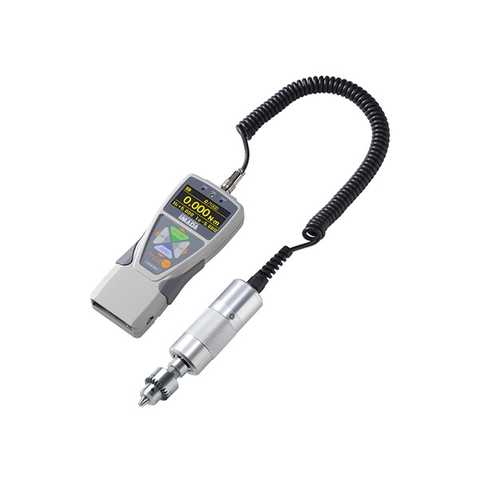

Handheld digital torque gauge HTGS series is functional yet user-friendly model with 50N-cm to 1000N-cm(10N-m) capacity. It is ideal for torque measurement of tightening/loosening a screw/bottle or turning a rotary switch etc. Its high sampling rate 2000Hz ensures high reproducibility of peak value testing and continuous data graphing. Moreover, its various data output options improve testing versatility in terms of data management on a PC using supplied software, and combination with external devices.
Model |
HTGS |
HTGA |
Outline |
Standard model with various functions |
Advanced model with additional functions of HTGS series such as input/output angles and saving to USB flash drive,etc. |
Accuracy |
+/-0.5%F.S.+/-1digit |
|
Angle measurement range |
|
0.1 to 9999.9 degrees |
Unit of measurement |
N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (N-cm, kgf-cm, lbf-in and ozf-in are available for 0.5N-m.) |
|
Display |
4-digit Organic EL |
|
Display update |
16/sec |
|
Sampling rate |
2000 data/sec at maximum |
|
Battery |
Nickel-hydrogen battery/Operating time:6.5 hours (2 hours full charge) |
|
Safe overload rating |
Approx.200% |
|
Operating environmen |
Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
|
Function |
Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, setting lock |
|
_ |
1st/2nd peak, Angle detection at torque peak value , Angle zero reset at selected torque |
|
Output |
USB, RS232C, ±2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
|
|
Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle (displacement) |
|
Overload warning |
Approx.110%F.S. (Warning message and alarm) |
|
External connecting switch |
Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching |
|
Weight |
Display: approx.490g |
|
Cable |
Approx. 0.5 to 1m (Curly Cord) |
|
Dimensions |
See [Dimensions] |
|
Accessory |
AC adapter, Inspection certificate, CD driver (including data logging software), USB cable, Carrying case, L wrench, Handles (10N-m range only) |
|
_ |
USB flash drive adapter |
