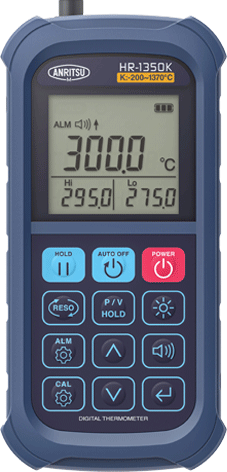

HR-1350K/ HR-1350E
HOLD
The thermometer stops measurement
by the HOLD key and holds the present readings.
Auto power-off
The thermometer will turn the power off automatically after 5minutes.
Resolution change
Press the [RESO] key to change the resolution of readings.
P/V Hold
The peak (Max.) value and the valley (Min.) value can be displayed by the P/V HOLD key on the sub-display.
Backlight
The backlight will operate by the Backlight key and the LCD display will be visible even in a dark place.
Calibration
The displayed value can be adjusted the CAL SET key.
Alarm output
The thermometer gives an alarm when readings go beyond the high or low limits.
Model |
HR-1350 |
||
Display |
LCD |
||
Waterproof specifications |
- |
||
Input connector |
ANP |
||
Input type |
Thermocouple Input: Type E, K |
||
Channel |
1ch |
||
Signal source resistance |
MAX.1k ohm |
||
Measurement Range |
1°C Resolution |
E |
-200 to 800°C |
K |
-200 to 1370°C |
||
0.1°C Resolution |
E |
-104.9 to 504.9°C (Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.) |
|
K |
-104.9 to 504.9°C (Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.) |
||
Measurement Accuracy |
1°C Resolution |
0°C to |
± (0.1% of reading +1°C) |
to 0°C |
± (0.5% of reading +1°C) |
||
0.1°C Resolution |
0°C to |
± (0.05% of reading + 0.2°C) |
|
to 0°C |
± (0.15% of reading + 0.2°C) |
||
Reference junction compensation accuracy |
±0.2°C at 25°C±10°C |
||
Temperature Coefficient |
±0.02×Δt°C (Add the value obtained by multiplying the excess temp.Δt[°C] by a coefficient to the total accuracy. e.g. ±0.5°C is added at room temp. of 0°C or 50°C) |
||
Operation Environment |
0 to 50°C, 0 to 80%RH (Non condensing) |
||
Storage Environment |
-20 to 50°C, 0 to 85%RH (Non condensing) |
||
Battery life |
approx.600h |
||
Power supply(Dry battery) |
4 AA Alkaline batteries |
||
Power supply(AC power) option |
available |
||
Sampling rate |
approx.200ms |
||
Linearlizer |
Digital Linearizer method (Compliant with JIS C1602-2015) |
||
Dimensions(mm) |
approx. 82(w)×166(H)×36(D) [Protruded parts excluded] |
||
Weight |
approx. 350g [Include Batteries] |
||
Supplied accessories |
Manual,Test report,Soft case, |
||
Hand strap,4 AA Alkaline batteries |
|||
Optional accessories |
Alarm output cable |
||
Alarm output |
TABLE1 |
||
Compatible standards |
EMC:EN61326-1:2013, EN 61326-2-1:2013 classA Table2( Industrial) RoHS:IEC EN 63000:2018 |
