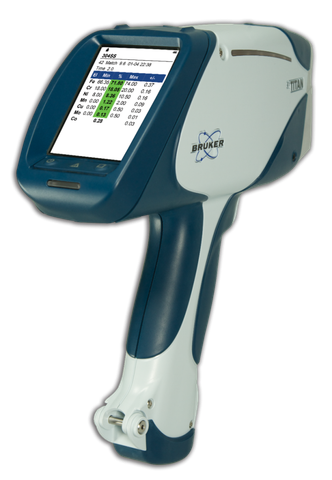

S1 TITAN
The S1 TITAN is lightweight (1.5 kg, including battery) and rugged handheld XRF analyzer. Fast analysis speed and exceptional accuracy are two key attributes that help define the S1 TITAN.
S1 TITAN |
S1 TITAN |
S1 TITAN |
|||
Detector |
Graphene window SDD; 20mm2 active area; Typical resolution <145eV @450,000cps |
||||
TITAN Detector Shield (TM) |
Included on all models |
||||
Size / Weight |
25 cm x 28 cm x 9 cm / 1.5 kg (with battery) |
||||
Integrated camera |
Optional on all models |
||||
Elemental Range |
Mg - U |
Mg - U |
Ti - U |
||
Collimator options |
8mm standard. |
8mm |
8mm |
