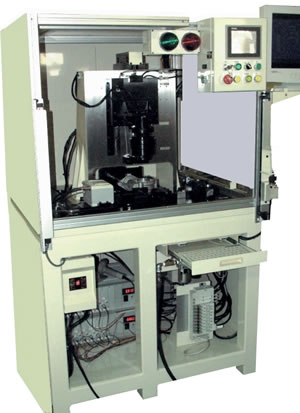

Housing Internal Diameter Automatic Measuring Equipment
Housing Internal Diameter Automatic Measuring Equipment

Housing Internal Diameter Automatic Measuring Equipment

SA-164

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • Automatically measure the inner diameter of casing blocks with drilled holes or void locations between shafts
  • With a repeatability accuracy of less than 3μm.
  • It can measure the diameter of orthogonal shaft holes, the distance between shafts, angles, and other spatial measurements simultaneously.
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: OBISHI
Type: Measurement instrument
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

This Equipment is used for automatic measurement of internal diameter of hole drilled housing block or space position between Axis.
High accuracy Measurement of Housing block orthogonal Axis which has hitherto been difficult, has been realize by our originally developed measurement technology, with repetition accuracy of less than 3μm.
It can measure orthogonal Axis hole diameter, Axis interval distance, inclnination, and other space measurements at the same time.

  • Power : AC200V 50/60Hz 1.5KVA
  • Air Source : 0.4MPa (4kg/cm2) or more compressed air.
  • Repetition Accuracy : 3μm
  • Cycle Time : 20 seconds
  • Applicable Type of Machines : 15 types
  • Option : Marking Function, Rank Separation Function, Barcode Reader
