AF9101
Contact
- Wide device support
It supports flash microcontrollers and various flash memories. - Use of specialized memory card
The control of master and operations can easily be done by the specialized algorithm memory card (CF card) which saves the programming algorithm, setting parameters, programming data, and verify data. - High speed transfer of programming data

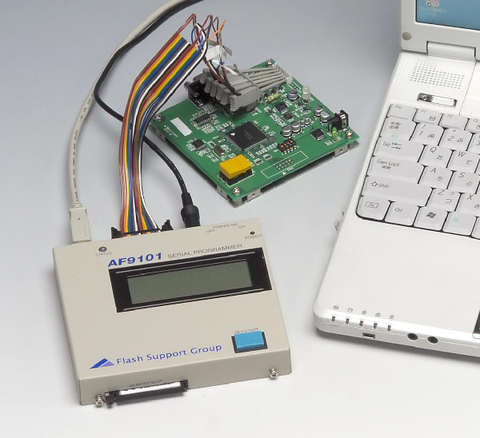

High speed data transfer from a PC is possible by the USB interface. - Operated by remote control
It can be operated and controlled easily from your PC.
- Used as stand alone
It can be operated independently without PC by the stand alone function. - Provides free update of algorithm software
The latest version of algorithm software is available on our website for free download.*However, the updating is limited to the devices which you selected at the time of initial setting. * User registration is required to use our download service.
- Gang programming to multiple circuit board
Using the dedicated external control interface, it will be possible to input actions according to an external trigger signal and to output results externally. The operability and productivity will be increased by incorporating several programmer main units.
|
|
|
|
|
Buffer Memory |
Standard |
256M bit |
|
Expansion |
by replacing to special algorithm card |
|
|
Sockets |
1 |
|
|
Supported Devices |
Programmable devices through JTAG/CLK synchronization/UART methods. |
|
|
External Interface |
|
|
|
Operating Voltages |
AC Adapter AC100V |
|
|
Frequency Range |
50-60Hz |
|
|
Power Consumption |
Max. of 3VA |
|
|
Size (D x W x H) |
122x132x22 mm |
|
|
Weight |
270g (excluding accessories) |
|
|
Others |
accessories |
|
|
Warranty |
Limited warranty of 1 Year |
|
