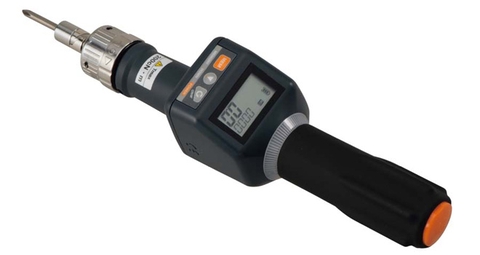

Indicating Torque Screwdriver
STC2 (-BT)/STC2-G (-BT)
Contact
Call 0972000270 now for the best advice!
Status:
Out of stock
Brand: TOHNICHI
Type: Measurement instrument

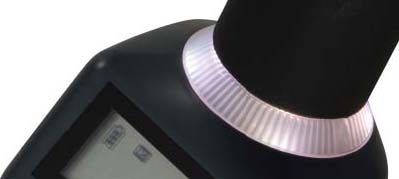

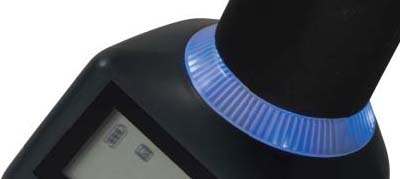

Mounted multi-functional LED ring. Operator can visibly and audibly check the torque status and judgment.
Application
- For precise tightening and inspection.
- For research and development electronic devices.
- For daily check of torque screwdrivers.
- The STC2-BT/STC2-G-BT is ideal for cell production and the assembly of small lot orders.
Specification
| MODELL | STC50CN2-G | STC200CN2-G | STC400CN2-G | |||||||||
| Bluetooth(R) | STC50CN2-G-BT | STC200CN2-G-BT | STC400CN2-G-BT | |||||||||
| DREHMOMENTBEREICH [cN·m] |
MIN. ~ MAX. | 10 ~ 50 | 40 ~ 200 | 80 ~ 400 | ||||||||
| 1 Stelle | 0,05 | 0,2 | 0,5 | |||||||||
| DREHMOMENTBEREICH [kgf·cm] |
MIN. ~ MAX. | 1 ~ 5 | 4 ~ 20 | 8 ~ 40 | ||||||||
| 1 Stelle | 0,05 | 0,02 | 0,05 | |||||||||
| DREHMOMENTBEREICH [lbf·in] |
MIN. ~ MAX. | 1 ~ 4,4 | 4 ~ 17 | 8 ~ 35 | ||||||||
| 1 Stelle | 0,05 | 0,02 | 0,05 | |||||||||
| GESAMTLANGE [mm] | 230 | |||||||||||
| GEWICHT [g] | 325 | |||||||||||
