Infrared Camera

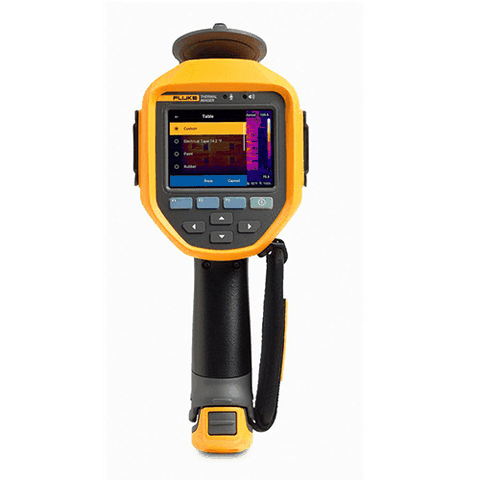

Ti480 PRO
The Fluke Ti480 PRO thermal camera has a wide temperature measurement range from ≤-20 °C to 1000 °C with an accuracy of ± 2 °C. The Ti480 Pro thermal camera has a spatial resolution of 0.93 mRad, D:S 1065:1. It is used in a variety of professional applications.
The Fluke Ti480 PRO infrared camera is designed with extremely high sensitivity to produce distinctive thermal images. It has the ability to detect the smallest changes and capture them with enhanced thermal sensitivity.
The Fluke Ti480 Pro is equipped with a sharper, clearer display that helps users easily address issues. It features a more intuitive image interface.
Capture target images more flexibly, from small to large.
Save time with Fluke Connect®.
Key Features of Fluke Ti480 PRO:
- Resolution: 640 x 480 (307,200 pixels)
- Temperature Range: ≤-20 °C to 1000 °C
- Field of View: 34°H x 24°V
- Spatial Resolution: 0.93 mRad, D:S 1065:1
- Temperature Accuracy: ± 2 °C or 2%
- Thermal Sensitivity: ≤0.05 °C at a 30 °C target temperature (50 mK)
- Enhanced Sensitivity
- Larger, sharper LCD screen
- Touchscreen display
- User-friendly, intuitive menu
- Swap out 2x and 4x telephoto lenses, wide-angle, and macro lenses without calibration – all compatible with Ti480 PRO and Ti450 PRO
- Fluke's 4x telephoto infrared lens on the side
- Instantly get sharp images of the target object.
- LaserSharp® automatic focusing technology
- Four times higher resolution with SuperResolution
- Save time – wirelessly sync images directly from the camera to the Fluke Connect® system and attach them to a machine profile or work order.
- Reduce the need for field notes with IR-PhotoNotes™ feature and voice annotations.
|
Key features |
|
|
IFOV with standard lens (spatial resolution) |
0.93 mRad, D:S 1065:1 |
|
Detector resolution |
640 x 480 |
|
SuperResolution |
Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image |
|
Infrared Resolution |
307,200 pixels |
|
MultiSharp™ Focus |
Yes, focused near and far, throughout the field of view |
|
LaserSharp® Auto Focus |
Yes, for consistently in-focus images |
|
Laser distance meter |
Yes, calculates distance to the target for precisely focused images and displays distance on screen |
|
Advanced manual focus |
Yes |
|
Ruggedized touchscreen display |
3.5 inch (landscape) 640 x 480 LCD |
|
Rugged, ergonomic design for one-handed use |
Yes |
|
Digital zoom |
2x and 4x |
|
Temperature measurement |
|
|
Temperature measurement range (not calibrated below -10 °C) |
≤-20 °C to 1000 °C (-4 °F to 1832 °F) |
|
Accuracy |
±2 °C or 2% (at 25 °C nominal, whichever is greater) |
|
Thermal sensitivity (NETD)* |
≤0.05 °C at 30 °C target temp (50 mK) |
|
On-screen emissivity correction |
Yes (both value and table) |
|
On-screen reflected background temperature compensation |
Yes |
|
On-screen transmission correction |
Yes |
|
*Best possible |
|
|
Wireless connectivity |
|
|
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
|
|
Fluke Connect® app compatible |
Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
|
Fluke Connect® Assets optional software |
Yes*, assign images to assets and create work orders. Easily compare measurement types in one location |
|
Fluke Connect® Instant Upload |
Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
|
Fluke Connect® tool compatible |
Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
|
IR-Fusion® technology |
|
|
Adds the context of the visible details to your infrared image |
|
|
AutoBlend™ mode |
Min, Mid, Max IR plus full visible on camera; continously variable in software |
|
Picture-In-Picture (PIP) |
Yes |
|
Built-in digital camera (visible light) |
5 MP |
|
Lenses |
||
|
Standard lens |
IFOV (spatial resolution) |
0.93 mRad, D:S 1065:1 |
|
Field of view |
34 °H x 24 °V |
|
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
|
IR-Fusion® technology |
Picture-In-Picture and full screen |
|
|
Optional 2x telephoto smart lens |
IFOV (spatial resolution) |
0.46 mRad, D:S 1529:1 |
|
Field of view |
17 °H x 12 °V |
|
|
Minimum focus distance |
45 cm (approx. 18 in) |
|
|
IR-Fusion® technology |
Picture-In-Picture and full screen |
|
|
Optional 4x telephoto smart lens |
IFOV (spatial resolution) |
0.23 mRad, D:S 2941:1 |
|
Field of view |
6 °H x 4.5 °V |
|
|
Minimum focus distance |
1.5 cm (approx. 60 in) |
|
|
IR-Fusion® technology |
N/A |
|
|
Optional wide-angle smart lens |
IFOV |
1.85 mRad, D:S 377:1 |
|
Field of view |
48 °H x 34 °V |
|
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
|
IR-Fusion® technology |
Full screen |
|
