Laser Diode Welder

LW-D30A / LW-D100

Contact

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: AVIO

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

See more promo codes

Overview
Specification

LW-D series of laser diode welders irradiates the laser emitted from the laser diode onto a plastic part and welds it in a non-contact manner.
This is an air-cooled, compact laser welding machine that can be easy operation. It is most suitable for soldering and plastic welding.

Applicable to Various Shapes and Material

Three types of output mode are available(Profile, Continuous, Pulse)

Laser Output Waveform is Visualized

Preset numerical data is converted into waveform and displayed
Actual output waveform is trace displayed

Simple Operation

Laser can be output immediately after switch ON
Easy-to-operate jog dial is equipped
Guide light to confirm laser output position is provided

Suitable to be Equipped on Automated Machine

RS-232C, I/O equipped
Various monitoring (alarm) functions

Desk Top Type
Compatible to Pb Free Solder

Lineup

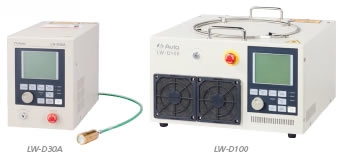

Items	LW-D30A	LW-D100
Max Rated Power	26W	100W
Features	Small spot diameter and high power density In addition to the standard spot diameter model (MinΦ800μm), small spot diameter with optional lens (MinΦ400μm) is available, too Light weight, air cooled, compact Small foot print contributes in securing work area and smaller size of the total machine Output head is attached as standard	Completely air cooled with high output of maximum 100W Small spot diameter and high power density In addition to the standard spot diameter model (fiber core diameter Φ400μm), small spot diameter model (fiber core diameter Φ200μm) is available, too

Items	LW-D30A	LW-D100
Wave Length	980 nm
Max Rated Power	26 W (Class 4)	100 W (Class 4)
Output Head	Attached	Sold Separately
Optical Fiber Core Diameter	φ 400 μm	Two types, Φ400 μm, Φ200 μm
Core Diameter	When standard output head is used : φ800 μm (WD 80 mm) When additional option lens is used : φ400 μm (WD 35 mm)	When separately sold output head is used : (imaging magnifi cation switchable between ×1 and ×2) Fiber core diameter Φ400 μm type ×2 Φ800 μm / ×1 Φ400 μm Fiber core diameter Φ200 μm type ×2 Φ400 μm / ×1 Φ200 μm When×2 WD 185 mm / When×1 WD 83 mm
Guide Beam	635 nm
Output Condition	15 Data
Output Setting Range	Current : 3.0 - 56.4 A (0.1 A step) Power : 0.0 - 26.0 W (0.1 W step)	Current : 0.10 - 10.30 A (0.01 A step) Power : 0.0 - 100.0 W (0.1 W step)
Time Setting Range	0.000 - 99.999 s (1 ms step)
Interface	I / O, RS-232C (max 57600 bps)
Output Mode	CW output, Pulse output, Profi le waveform output (max 256 point setting)
Monitor Display	LD drive current, Laser power (Digital display, Graphic display)
Alarm Function	Interlock error, Control error, Over current error, Over power error, LD high temperature error, FET high temperature error
Cooling Method	Air
Power Source	AC 100 V ±10%, 50/60 Hz	AC 100 - 240 V ±10%, 50/60 Hz
Max Power Consumption	800 W
Dimension / Weight	W200×D430×H280 mm (excluding protrusion and optical system) 19 kg (excluding optical system)	W435×D430×H255 mm (excluding protrusion and optical system) 30 kg (excluding optical system)
