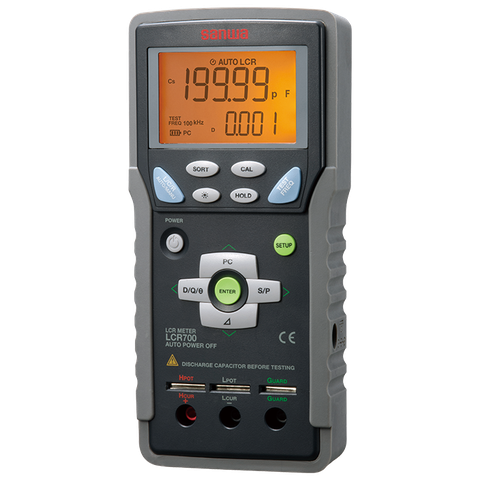

LCR700

Contact

Features

Automatically selectable L/C/R measurement and Selectable Series/Parallel mode
Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/θ/ESR)
5 different measuring frequencies (100/120/1k/10k/100kHz)
DC resistance function (7 ranges: 200.00Ω to 200.0MΩ)
5-terminal measurement (4 terminals plus guard shielding)
Device Sorting mode to allow users to quickly sort passive devices such as L, C, and R

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: SANWA

Type: Measurement instrument

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

Functions	Ranges	Best Accuracy
Ls/Lp	20.000u/200.00u/2000.0u/20.000m/200.00m/2000.0m 20.000/200.00/2000.0/20.000kH	±(0.3%+3)
Cs/Cp	200.00p/2000.0p/20.00n/200.00n/2000.0n/ 20.000u/200.00u/2000.0u/20.00mF(50pF or less: out of accuracy)	±(0.3%+3)
Rs/Rp	20.000/200.00/2.0000k/20.000k/ 200.00k/2.0000M/20.000M/200.0MΩ	±(0.3%+3)
Ω（DCR)	200.00/2.0000k/20.000k/200.00k/ 2.0000M/20.000M/200.0MΩ	±(0.3%+3)

Sampling rate	1.2 times / second (LCR mode) 0.5 times /second (DCR mode)
Measureemnt frequencies	100/120/1k/10k/100kHz
Power supply	6LF22/6LR61 alkaline 9V
Battery life	Approx. 35 hours (auto LCR mode, 1 kHz)
Size / Mass	H184×W87×D45 mm / Approx. 400g
