Magnescale

GB-ER

Contact

Features

Excellent durability against workshop conditions – resistant to oil, dirt, shock and vibration.
Compact design for a space-saving installation.
Accuracy: (5+5L/1000)μm
Resolution: 0.5μm
Simple structure should be conducive to long life.

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: MAGNESCALE

Type: Measurement instrument

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

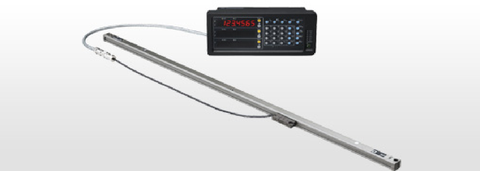

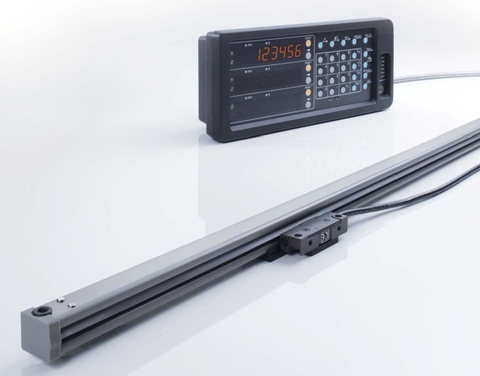

The GB-ER series combines original Magnescale technology and legendary durability with a built-in reference point.

Specification

Magnescale reserves the right to change product specifications without prior notice.
Model		GB-ER(SR138R)
Measuring length(L:mm)		50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200
Scale length	Overall length(mm)	L+104mm(50～200mm), L+120mm(250～2200mm)
	Maximum travel length(mm)	L+14mm(50～200mm), L+30mm(250～2200mm)
	With or without Centerfootplate	None(50～950mm), Included(1050～2200mm)
	Mounting hole pitch	L+91mm(50～200mm), L+107mm(250～2200mm)
Accuracy(20℃)		(5+5L/1000)μm
Reference point		Standard:Center point
Allowable face flatness		±0.1mm
Expansion coefficient		(11±1)×10^-6/℃
Operating temperature		0～40℃
Storage temperature		-20～50℃
Head cable length		0.3m
Cable length		3m
Protective design grade		Scale: IP65 Interface unit: IP30
Output signal	Output signal	A/B quadrature signal, Z signal
	Power supply	DC+5V±5%
	Connector	D-sub 9 pin
Resolution		0.5μm
Response speed	Scale signal	60m/min
Response speed	Reference signal	60m/min
Maximum consumption current		200m
