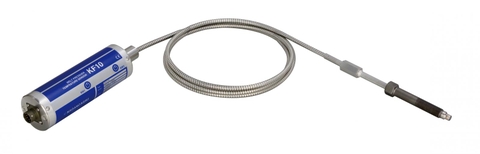

Melt Pressure & Temperature Sensor

Items

Description

Items Description Wetted parts materials

Sapphire, SUS316, Nickel, Gold-copper alloy

Pressure range

0 to 10, 25, 35, 50, 701 MPa

Temperature range

0 to 400°C

Diaphragm diameter

φ8 mm

Sensor length (B dimension)

80, 150, 200, 250, 300, 350 mm

Connection

G1/4B 1/2-20UNF

Pressure output accuracy

0.25% at 150°C (Factory default 10MPa range is ±0.5%F.S.) 0.5% at 300°C (Factory default 10MPa range is ±1.0%F.S.)

Temperature coefficient

Detection end: ±0.05% FS/°C (between 150°C and 400°C) Circuit part: ±0.05% FS/°C

Temperature output accuracy

±2.5°C (150 to 333°C) 333°C or higher ±0.75% X |T|°C * |T|: Temperature at measurement

Maximum allowable pressure

120%F.S.

Operating temperature

Sensor head: 0 to 400°C

Lead: 0 to 150°C

Amplifier section: 0 to 60°C

Storage temperature

-20 to 80°C

Lead length

2 m

Cable bend radius

80 mm (minimum)

Supply voltage

15 to 30V DC

Current consumption

Max. 250mA

Output

4 to 20mA DC (standard)

0 to 5V DC

0 to 10V DC

Response speed

50 ms

Zero adjustment

Non-contact adjustment with adjustment magnet

Protection class

IP54
