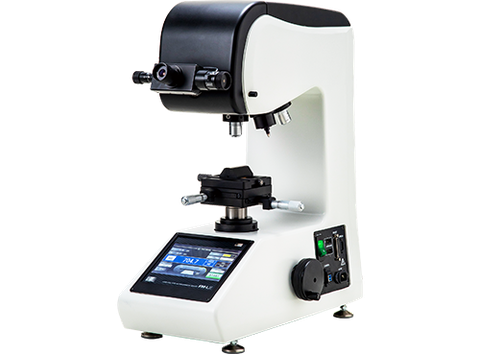

FM-LX
NEW STANDARD OF MICROVICKERS HARDNESS TESTER
Independently developed automatic indentation with high performance dedicated software & PC measurement.
By removing the measuring microscope, the appearance is refreshed.
(R type with automatic indentation reading function)
In addition to the conventional weight method, a lineup of models that adopts the loading by Load-cell and the multistepload switching have made it possible to achieve the heavy accuracy.
Multi-load type 50gf~10kgf various with a wide load range corresponds to various tests. (FM-LX series)
By adopting a tilted turret, the turret rotation reduces the risk of contact bewteen the sample and the indenter/objective lens.
In addition to the standard 2 lenses (×10 and ×50), up to 5 can be installed at the same time. (option)
A wider range of measurement and observation is possible from low magnification to high magnification.
Standard 1 | Vickers indenter (HV)
Option 1 | Vickers (HV) / Knoop (HK) / Brinell (HB)
Total 2 pieces of different indenter can be installed.
The main display screen can be switched by swiping.
Capacitive touch panel realizes light touch operation.
Measured data can be transferred directly by connecting to a PC from the output port of the main unit. Eliminates recording mistakes by operators.
Item |
FM-LXR |
FM-LX |
|
Test load |
8 load levels for A type: 10/25/50/100/200/300/500/1000gf |
||
Test load switching method |
Load-cell type |
||
Loading mechanism |
Automatic load/hold/release method |
||
Load applying speed |
60μm/sec (Compliant standards: JIS B 7725, ISO 6507-2, ASTM E92: 15 to 70μm/sec) |
||
Dwell time |
5 ~ 999sec |
||
Turret mechanism |
Rotation: Automatic / Form: 15° tilt type 6 positions |
||
Diamond indnter |
Standard |
1 Vickers indenter (HV) |
|
Option |
Vickers indenter (HV), Knoop indenter (HK) or Brinell indenter (HB): total 2 can be installed |
||
Infinity objective lens |
Standard |
2 Lenses ( X 50 & X 10) |
|
Option |
Up to 5: (2 standard lenses + 3 additional lenses): X1.25 / X2.5 / X5 / X20 / X100 |
||
Automatic measurement camera device |
Standard equipment |
- |
|
Light source |
Built-in LED light source |
||
Dimensions |
W283 x D480 x H620mm |
||
Weight |
45kg |
||
Power supply |
Single phase AC100~240V 50/60Hz |
