Microwave Network Analyzer
N5244B
Contact
Call 0972000270 now for the best advice!
Status:
Out of stock
Brand: KEYSIGHT
Type: PNA Network Analyzers

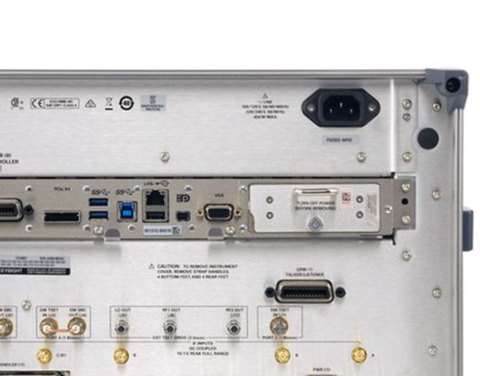

N5244B PNA-X Microwave Network Analyzer, 900 Hz / 10 MHz to 43.5 GHz
- Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer.
- Reduce test time with the widest range of single-connection measurement applications.
- Accurately test linear and nonlinear device characterization using advanced error correction.
- Choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test.
- Accelerate insight into component behavior using a multitouch display and intuitive user interface.
Frequency range: 900 Hz/10 MHz to 43.5 GHz
- System dynamic range (at 20 GHz):
- 127 to 135 dB depending on configuration
- 128 to 156 dB with direct receiver access (typical)
Maximum output power at test port (at 20 GHz):
- 13 dBm (Options 201, 401)
- 10 dBm (Optional 21x, 41x)
- 10 dBm (Optional 22x, 42x)
Maximum power scanning range: 38 dB
- Noise trace: 0.002 dB rms (1 kHz BW)
Harmonics (ports 1, 3) 10 MHz to 2 GHz > 2 GHz:
- 51 dBc typical
- 60 dBc typical
Tee bias, current, maximum voltage: ± 200 mA, ± 40 VDC
Dimensions, H x W x D (with feet, handle): 280 x 459 x 649 mm
Weight (nominal net),
Dimensions, H x W x D (with feet, handle): 280 x 459 x 649 mm
Weight (nominal net),
- 2 ports: 46 kg
- 4 ports: 49 kg
