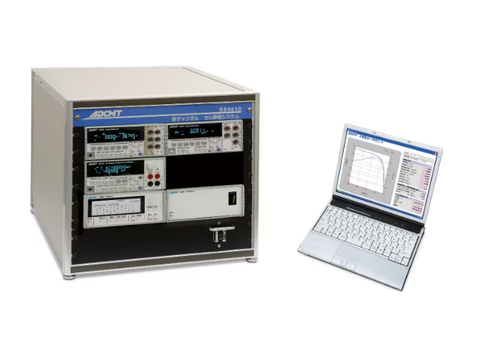

Multi-Channel PV Cell Evaluation System
SS9610
The SS9610 evaluates the conversion efficiency and the degradation characteristic of solar cells in a long-time exposure test and supports up to 50 channels.
In the conventional way, an expensive dedicated system is required for evaluating multiple solar cells over a long time. However, the SS9610 realizes a low-cost and high-performance system by using a DC voltage/current source and a general-purpose scanner. In addition, it includes an easy calibration function.
This system measures the I-V characteristic and the temperature of cells regularly and logs data such as Isc, Voc, Ipmax, Vpmax, η and temperature. Solar radiation data collection is also available with an actinometer.
Load resistance connection function
When load resistances are connected to the scanner by using the actuator card, connecting channels other than ones to be measured to the load resistances will realize degradation characteristic evaluation under a condition close to the actual use condition.
Auto file creation function
The daily/monthly automatic file creation function (logging data) prevents the file size from increasing to ensure stable long-time measurement.
Output file setting items: file creation interval, file name, destination
